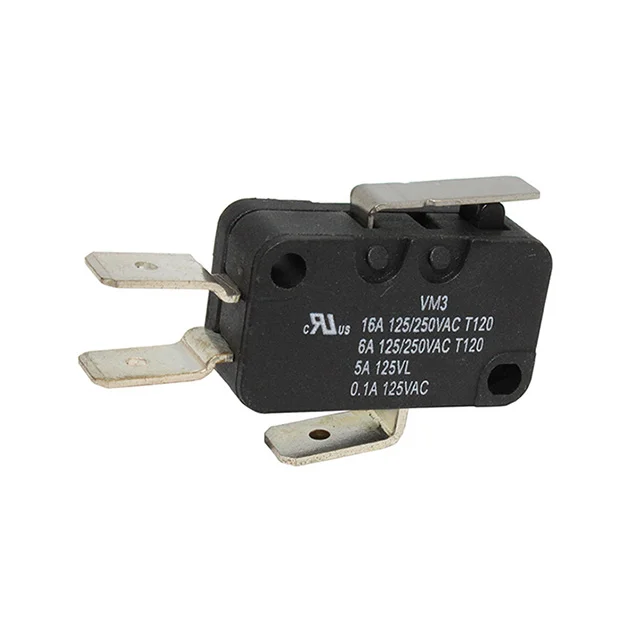

VM3 Series
Compact and versatile, the UL/cUL certified VM3 Series snap-action switch is ideal for panel-mount applications. Choose from a wide range of actuator styles and quick-connect terminals (.250 or .187) for flexible integration. Available in SPST (NO/NC) and SPDT configurations with durable silver-plated contacts.
Features
Momentary, Miniature Size, Actuation Force Options, Multiple Lever Options, Three Terminal Options, UL/cUL Certified
Specification
Electrical Ratings
UL : 16A@125VAC, 16A@250VAC, 16A@T120, 6A@125VAC, 6A@250VAC, 6A@T120, 5A@125VAC, 5A@T120; TUV 16(6)A@25VAC, 16(A)@T120
Number Of Poles
SPST NO, SPST NC, SPDT
Terminal Options
.250 Quick Connect, .187 Quick Connect 0.8mm, .187 Quick Connect 0.5mm

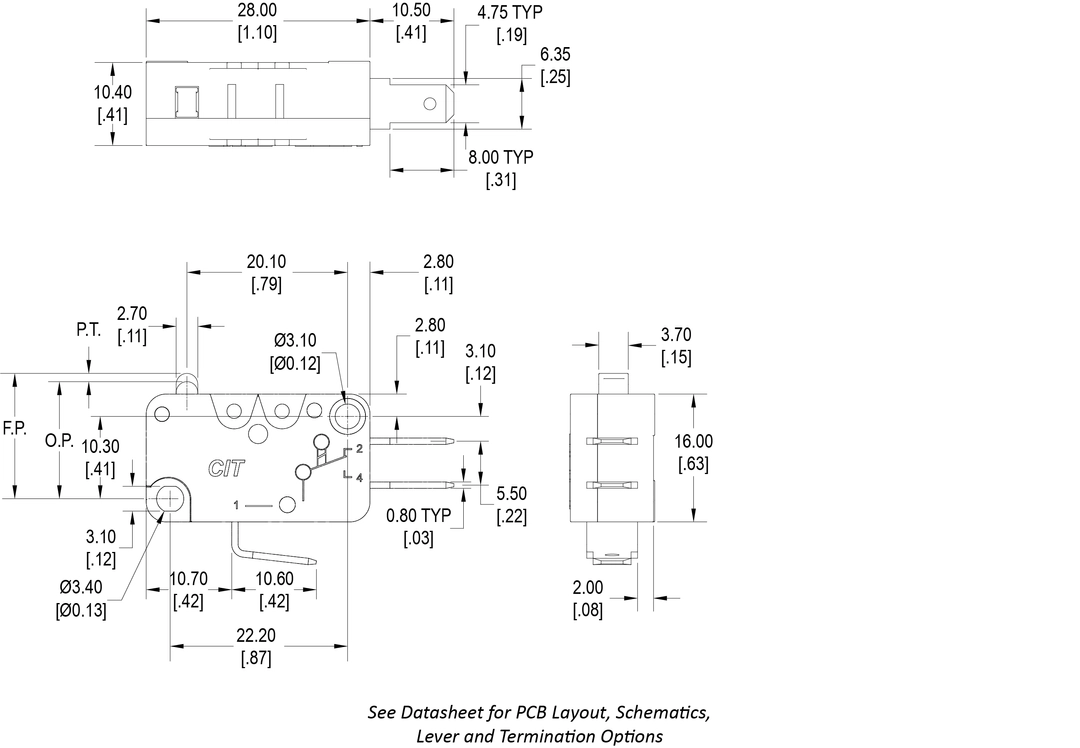

Dimensional Drawing
