PC792E Series Automotive Relay
50 Amp Automotive Plug-In / PCB Mini ISO Relay
Features |
Datasheet in PDF |
|
| Automotive Plug-In PCB Mini ISO Relay 50 Amps Continuous Carrying Current Internal Diode Reverse Diode or Resistor Sockets Available |
|
 |
| Contact Rating |
50A@14VDC resistive 20A@28VDC resistive 40A@14VDC resistive 15A@28VDC resistive |
|
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| 26.0 Xx 26.0 x 22.7 | 1A, 1C | AgSnO2 | 12VDC, 24VDC | 100m Ohm max. |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
| 100M Ohm min. at 500VDC | 100K cycles | 1M cycles | Contact-to-Contact: 500V rms Contact-to-Coil: 750V rms |
| Operating Temperature | Mounting Methods | Agency Approvals |
| -40?C to 125?C | PC Pin, Quick Connect |

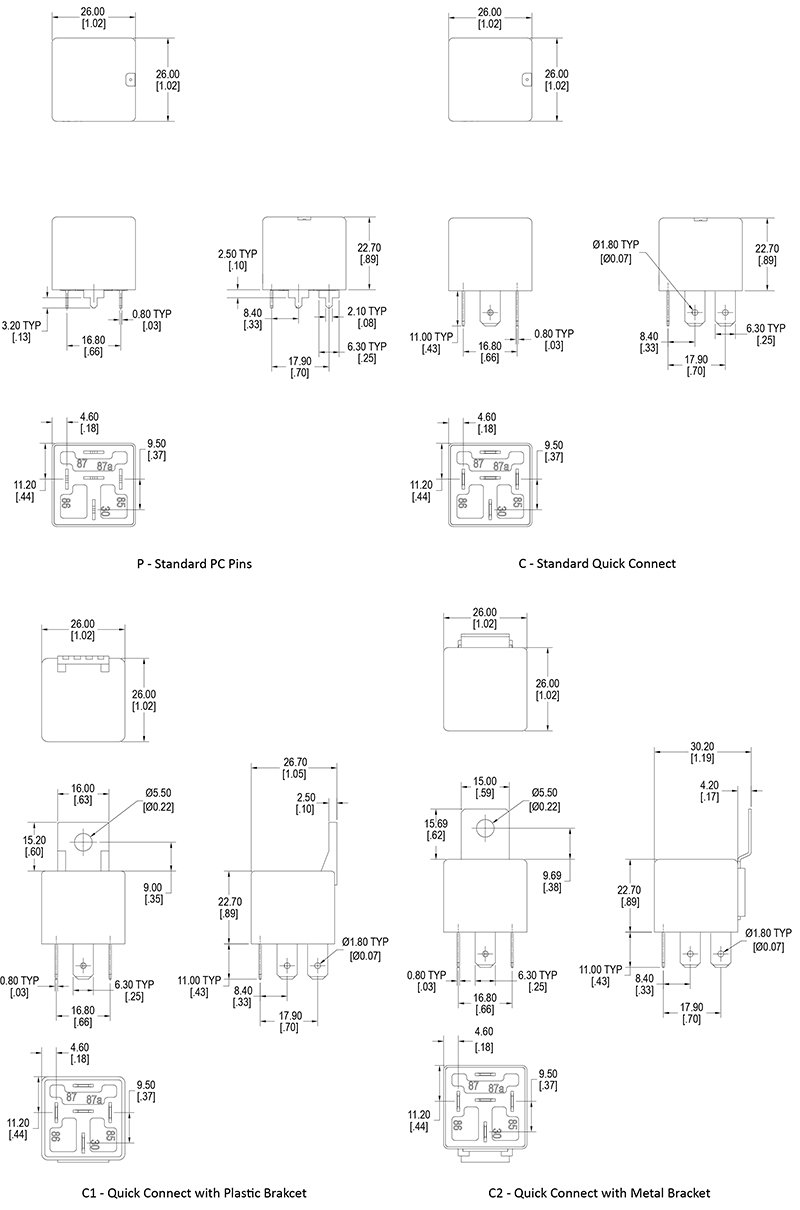

Dimensional Drawing

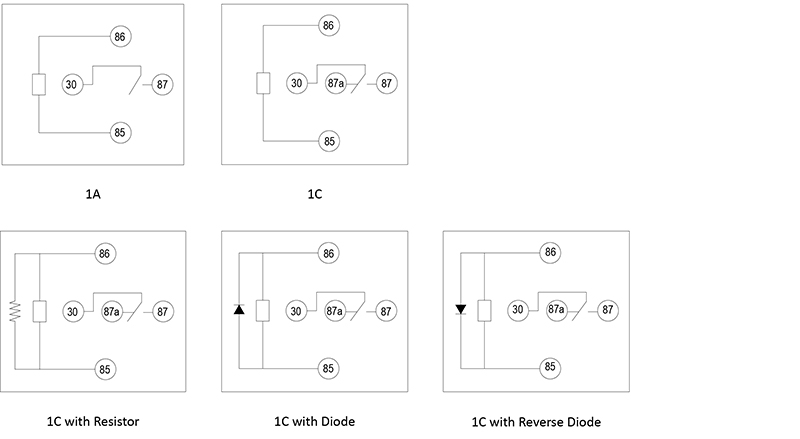

Schematic

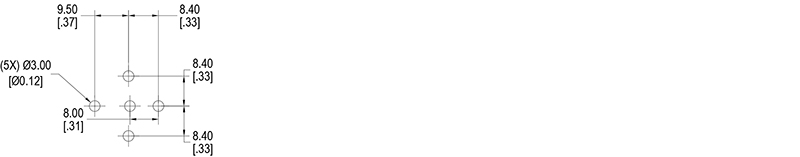

PC Board Layout
