RN Series Rocker Switch
The RN Series rocker switch is a 20Amp miniature in size . Multiple latching options are available with quick connect/solder lug termination. Numerous switch functions are available. The versatile RN series offers multiple housing color, actuator color, and actuator marking color choices. IP40 Sealing Degree.
Features |
Datasheet in PDF |
|
20Amp Miniature Rocker Multiple Housing Color Options Multiple Actuator Color Options Actuator Marking Options Ideal for Tight Spacing IP40 |
Classifications | Illuminated Through-Hole |
Number Of Poles
SPST, DPST
Latching Option
Multiple
Terminal Options
Quick Connect/Solder Lug
Switch Function
Off-None-On, Off-None-(On), (Off)-None-On,On-None-On, On-None-(On), On-Off-On, (On)-Off-(On), On-Off-(On)
Electrical Ratings
UL61058-1, 20A@125VAC, 16A@250VAC, 1hp@250VAC, 3/4hp@125VAC
Electrical Life
10,000 cycles
Contact Resistance
<= 50mOhm initial
Dielectric Strength Contact To Contact
1500V rms
Insulation Resistance
> 1000MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
Polycarbonate (PC) or 6/6 Nylon
Housing Materials
6/6 Nylon
Contacts Materials
Silver Alloy
Terminals Materials
Silver Plated Copper Alloy
Housing Color
White, Standard Black, Gray
Lens Color
Red Transparent, Yellow Transparent, Green Transparent, Blue Transparent, Black with Transparent Lens
Actuator Color
White, Black, Red, Orange, Gray
Actuator Marking Color
Contact Factory

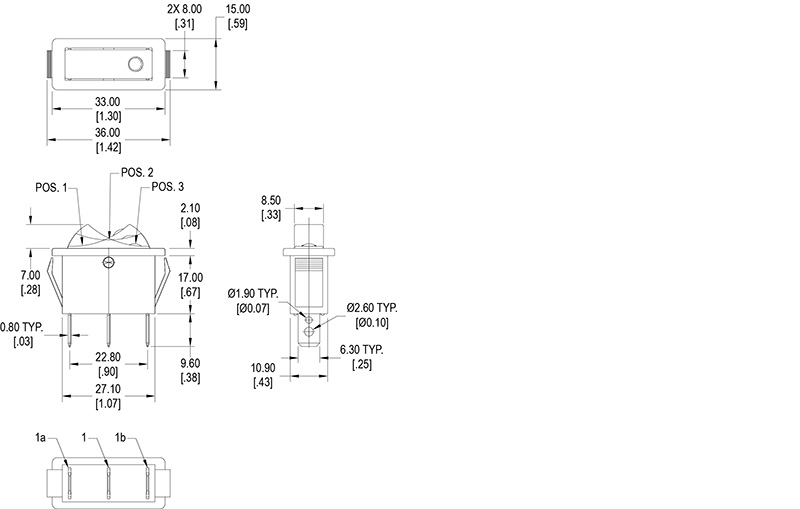

Dimensional Drawing
Schematic
