SH Series Key Pushbutton Switch



Features

Datasheet in PDF

Illuminated Option with Laser Etching Available
Bi-Color LED Option
Multiple Cap Styles



Classifications Illuminated Through-Hole





Number Of Poles
SPST
Latching Option
Momentary
Actuator Styles
Square, Round, Flat, Post, Large Square Cap
Terminal Options
PC Pin
1st Led
Red, Green, Yellow, Blue, White, Red/Green, Red/Yellow, Yellow/Green, Blue/Green, Blue/Red, Blue/Yellow
Electrical Ratings
50mA@35VDC
Electrical Life
100,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
130 +/- 50gF
Actuation Travel
0.5 +/- .1mm
Dielectric Strength Contact To Contact
500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Contacts Materials
Silver Plated Copper Alloy
Terminals Materials
Silver Plated Copper Alloy
Cover Material2
Polycarbonate (PC)
Base Material
Valox
Actuator Color
White, Black, Red, Yellow, Green, Orange, Blue, Dark Gray, Beige, Clear
Cap Styles
C11, C12, C13, C14, C15, C16, C17, C18, C19, C22, C26, C27, C28
Laser Etching Styles
A, B, C, D, E, F, G, H, J, K
Laser Etching Colors
Misty Silver, Bright Silver, Bright Gold

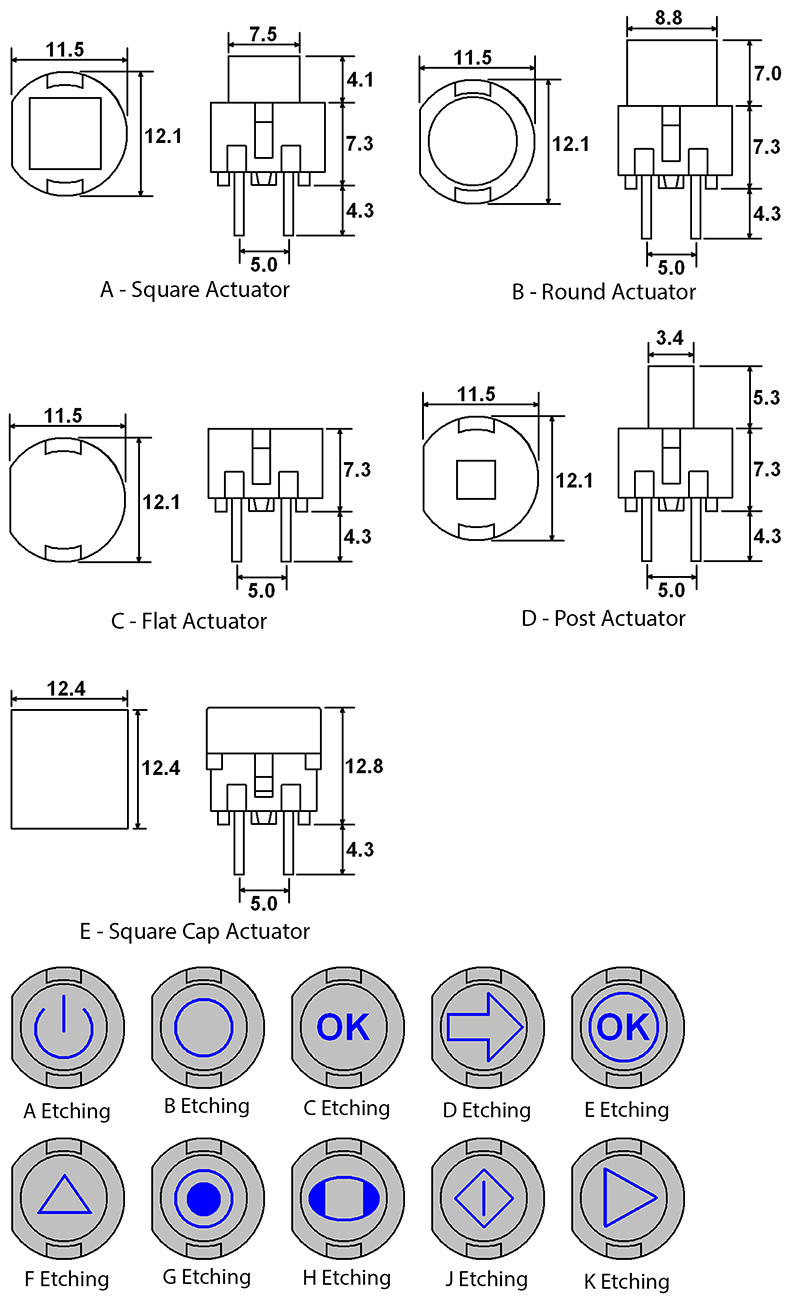

Dimensional Drawing

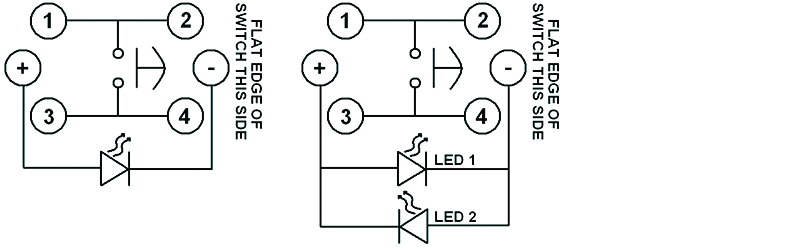

Schematic

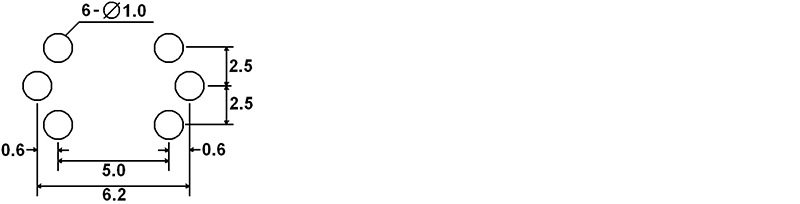

PC Board Layout
