TJ Series Tactile Switch
The TJ Series illuminated tactile switch is IP67 process sealed in surface mount, right angle, surface mount right angle, or through-hole termination options. Bi-color LED choices for this illuminated switch are red, yellow, green, pure green, blue, white and orange with many color combination of the same. The TJ series single pole single throw switch offers semi-transparent, transparent, and opaque caps in over ten colors ranging from clear to misty silver for laser etching. Five different cap styles including a support ring allow the TJ series to configure into a navigation switch grouping. Discover the DPDT and SPST N O momentary switch options today!
Features |
Datasheet in PDF |
|
IP67 Process Sealed Surface Mount and Through-Hole Options Vertical and Right Angle Navigation Switch Configuration Option |
![]() |
![]() |
Classifications | Illuminated Surface Mount, Through-Hole Sealed |
Number Of Poles
SPST NO
Latching Option
Momentary
Terminal Options
Surface Mount
1st Led
Red, Yellow, Green, Pure Green, Blue, White, Oange, Red/Yellow, Red/Green, Red/Blue, Yellow/Green, Yellow/Blue, Green/Blue
Electrical Ratings
50mA@12VDC
Sealing Degree
IP67, Process Sealed
Electrical Life
500,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
200 +/- 80gF, 450 +/- 150gF
Actuation Travel
0.25 +/- .1mm
Dielectric Strength Contact To Contact
250V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
6T Nylon
Terminals Materials
Silver Plated Copper Alloy
Cover Material2
Stainless Steel
Base Material
6T Nylon
Seal2
Rubber, Silicone
Cap Styles
A, B, C, D, E
Cap Colors
Clear Semi-Transparent, Clear Transparent, White Semi-Transparent, White Transparent, Red Semi-Transparent, Red Transparent, Yellow Semi-Transparent, Yellow Transparent, Green Semi-Transparent, Green Transparent, Blue Semi-Transparent, Blue Transparent, Wh
Laser Etching Styles
A, B, C, D, E, F, G, H, I ,J

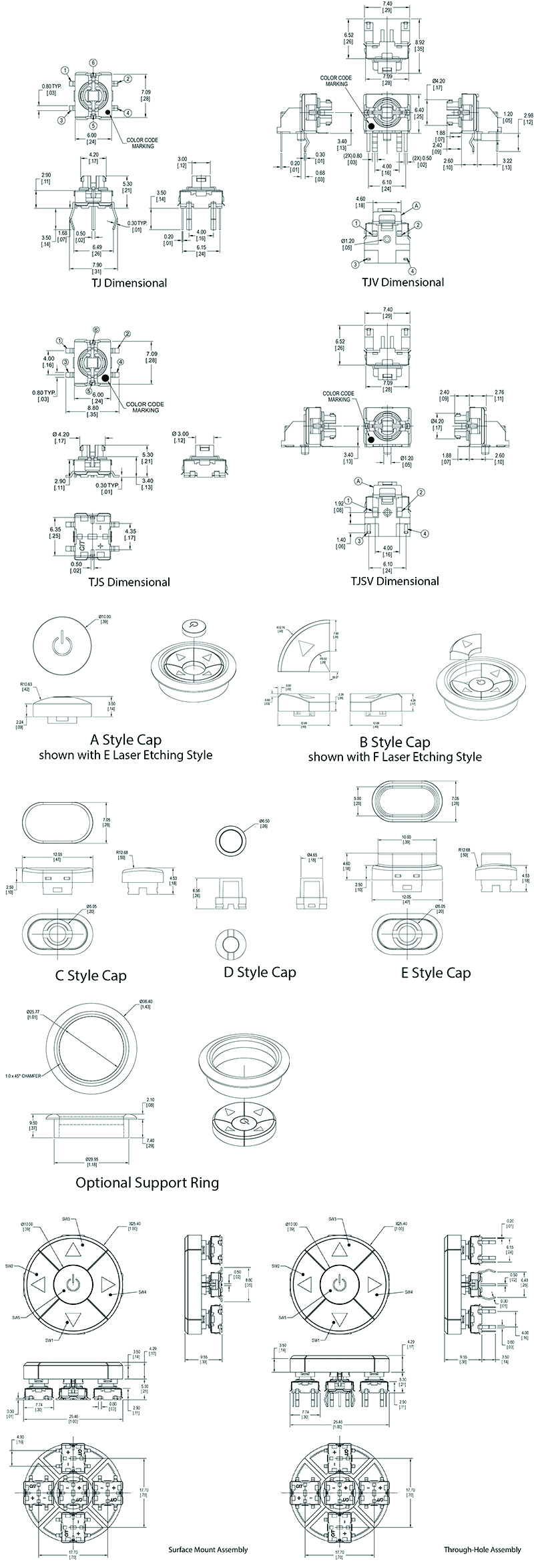

Dimensional Drawing
Schematic

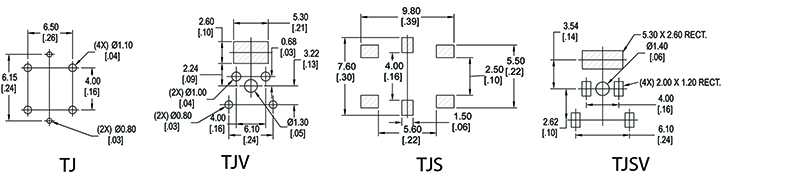

PC Board Layout
