A Series Relays

Automotive relays are used in a wide variety of automotive-related equipment, lamp accessories and bus applications. Available in many sizes with switching capacity up to 80amps including shrouded and water resistant versions. Available termination options include PC pin and quick connect mounting; some series include metal and plastic mounting tab and flange choices.

A1 Series

With switching capacity up to 30A, the A1 Series is suitable for automotive and lamp accessories. Mounting methods are PC pin or quick connect. Contact arrangement options are 1A or 1C with coil power options of 1.2W or 1.5W. The A1 Series size is 22.8 x 15.3 x 25.8mm.
More Information

A2 Series

Offering two mounting flange options the A2 Series is also available with a shrouded version. Large switching capacity up to 40A with coil voltage ranging from 6VDC up to 48VDC. Coil power options are 1.6W or 1.9W. Contact ratings are 1A, 1B or 1C. The A2 Series dimensions are 26.0 x 26.0 x 24.5mm.
More Information

A3 Series

Large switching capacity up to 80A with PC pin or quick connect mounting, the A3 Series is QS-9000 and ISO-9002 certified. Offering both standard and heavy duty contact ratings , the A3 Series is available as 1A, 1B, 1C or 1U. Coil voltage choices are 12VDC or 24VDC, with coil power of 1.8W. Dimensions are 28.5 x 28.5 x 26.5mm.
More Information

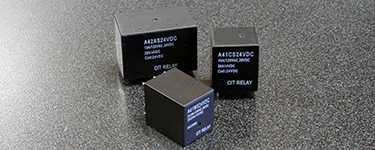

A4 Series

The A4 Series relay features low coil power consumption with switching current up to 20A with a dual relay option available. Contact arrangement options are 1A, 1C, 1U, 1W, 2A, 2C, 2U or 2W. Coil power is 1.0W and coil voltage is 12VDC or 24VDC. Dimensions are 16.9 x 14.2 (29.7) x 19.5mm. The A4 Series is suitable for household appliances and automotive applications.
More Information

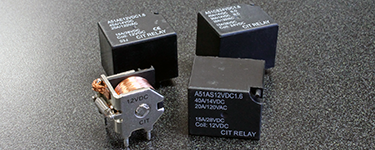

A5 Series

The A5 Series relay offers switching capacity up to 40A while light weight and small in size. Contact arrangement options are 1A, 1B or 1C. Coil voltage options range from 9VDC up to 24VDC with coil power choices of 1.6W or 1.9W. Dimensions are 25.8 x 20.5 x 20.5mm. The A5 Series is an automotive and lamp relay suitable for a variety of accessories.
More Information

A6 Series

The A6 Series automotive relay is small in size and light weight. Offering low coil power consumption, switching current is up to 30A with contact arrangement choices of 1A or 1C. Coil voltage options are 12VDC or 24VDC with coil power of 0.9W or 1.3W. With PC pin mounting, the A6 Series is 22.5 x 15.0 x 25.2mm. Contact factory directly for information on our shrouded version.
More Information

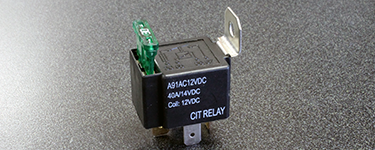

A9 Series

Accommodating a standard automotive fuse, the A9 Series relay offers switching capacity up to 40A. With a metal mounting tab, the quick connect relay offers 1A contact arrangement with coil voltage of 12VDC or 24VDC with coil power of 1.8W. Dimensions are 35.5 x 25.5 x 21.0mm.
More Information

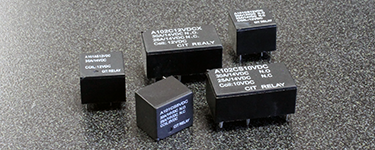

A10 Series

The A10 Series automotive relay is available in a dual relay package. Ultra light weight and with switching capacity up to 30A, the A10 withstands high temperature. PC pin mounting, coil voltage ranges from 5VDC up to 24VDC with coil power of .55W. Contact arrangement options are 1A, 1C, 2A or 2C. Dimensions are 12.0 (23.8) x 12.9 x 9.9mm. Mounting methods for this automotive relay are PC pin or quick connect.
More Information

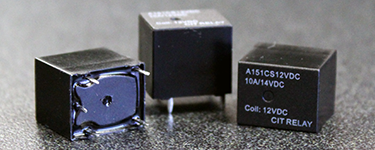

A15 Series

Switching capacity up to 20A, the A15 Series relay is small in size and light weight. Suitable for automotive and lamp accessories, the A15 Series offers PC pin mounting, contact arrangement options of 1C, 1U, 2C or 2U with coil voltage of 12VDC and coil power of .70W. Dual relay option is available. Dimensions are 15.5 x 12.5 (25.5) x 13.7mm.
More Information

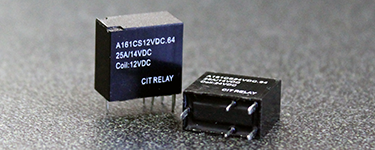

A16 Series

Switching capacity up to 25A, with PC pin mounting, the light weight and small in size A16 Series is QS-9000 and ISO-9002 certified. Offering F Class insulation standard, the A16 Series is available with contact arrangement 1C. Coil voltage is 12VDC, with coil power options of .64W or .80W. Dimensions are 14.5 x 7.7 x 13.7mm.
More Information

A17 Series

With switching capacity up to 30A, the A17 Series automotive relay is light weight and small in size. Suitable for automotive and lamp accessories, the A17 offers contact arrangement of 1A with coil voltage options of 12VDC or 24VDC and coil power of .96W. PC pin mounted, the A17 Series is 16.5 x 15.5 x 24.3mm in size.
More Information

Sockets

We offer relays sockets for a large number of automotive relays and UL approved relays. For use in both PC Pin and Panel Mount & Wire assembly. DIN Rail Mountable and Finger Safe DIN Rail Mountable are also available.
More Information
