EV Charging Stations

Relays and switches are becoming highly used in the emerging market of EV Charging Stations. CIT Relay & Switch offers a wide variety of relays and switches to suit this market and all can be customized as needed.

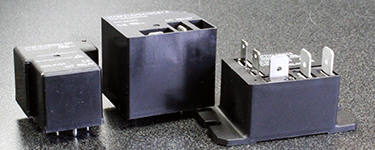

J115F 40amp Series

The J115F Series of relays are available in three styles, all offering heavy contact load up to 40 amp and strong shock and vibration resistance in light-weight and small size packages. PC pin mounting or panel mounting option is dependent upon the style chosen, with contact arrangements ranging from 1A to 1C. Coil voltage ranges from 5VDC to 277VAC with coil power of .60W or .90W or AC coil power of .2VA. Dimensions are depending upon series, with mounting tabs also available. UL and T?V certified.
More Information

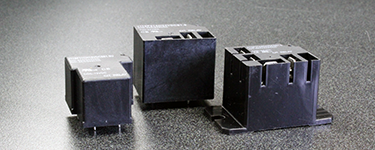

J115F 50amp Series

The J115F 50amp Series relays offer heavy contact load and strong shock and vibration resistance in a light-weight and small size package. These relays offer 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 110VDC with coil power of 1.5W. Dimensions depend upon the style option chosen, including PC pin, low profile and mounting tab versions. UL Agency approval is E19785
More Information

Anti-Vandals

With sealing degree of IP67, CIT Relay & Switch Vandal-Resistant Switches are available in a variety of sizes from 12mm FH & GH Series up to the 40mm DH Series. Also available with UL approval in our AHU and DH22U Series, our IP65 switches offer both ring and dot illumination and non-illuminated options. Choose the EH Series anti-vandal switch for a rounded convex actuator or the AH, BH, CH or DH Series for a flat actuator. Choices of body and actuator color include stainless steel, nickel and anodized aluminum in black, red, yellow, green or blue, with LED bi-color options.
More Information

Snap-Action Switches

Frequently known as a micro switch, a snap-action switch is an electromechanical switch that is actuated by very little physical force, through the use of a tipping point mechanism. Snap-action micro switches can open and close an electrical circuit at a rapid speed, triggered by an external force. Offering two sizes, miniature and sub-minature, we will soon have an ultra sub-minature version available, contact factory. Sealed versions are available.
More Information

Tactile Switches

CIT Relay & Switch offers tactile switches with lighted, sealed, thru-hole, right angle and surface mount terminal options with a multitude of choices in cap styles, many of which are available with and without LED hole and several optional frames. Our extremely versatile tact switches provide design engineers with several LED color choices. Bi-color choices make endless the combinations and applications for these popular switches. Non-lighted versions are also available with multiple cap and frame color combinations. Process sealed versions are available.
More Information

DIP Switches

CIT Relay & Switch offers the low cost K Series family of DIP switches. Offering both extended and recessed actuators, the K Series standard, half pitch, right angle, and low profile DIP switches are available in through-hole, Gull Wing and J Lead termination. Positions range from 01 to 12. Most of the K Series family are compatible with SMT assembly and infrared reflow & automatic wave soldering. Packaging options include tape and reel or tube. Top tape seal is offered with the recessed actuators.
More Information
