Elevator & Escalator

Electromechanical relays and switches are used in a large variety of elevator, escalator and people mover controls in both the control system and the user interface. Relays are often used in the mechanical control of the system, while our Anti-Vandal switches are often the most visible switch used. High reliability is required due to heavy use and long-term life expectancy. Our relays and switches represented here are currently being used in all types of people movers throughout the world. The ability to customize the design is a hallmark of our product.

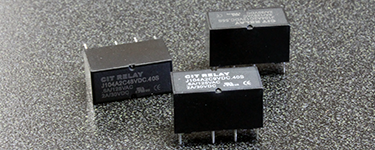

J104 Series

The J104 Series relays offer bifurcated contacts for high reliability with high sensitivity. Conforming to FCC Part 68, this PC pin mounted relay offers 2C contact arrangement with coil voltage ranging from 3VDC up to 48VDC with coil power options of .40W
More Information

J107F Series

F Class insulation is standard on the J107F Series relay. Light-weight and small in size, the J107F Series is PC pin mountable with contact arrangement options of 1A, 1B, or 1C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .36W, .45W or .80W. The dimensions of the UL-approved relay are 19.0 x 15.5 x 15.3mm. UL Agency approval is E197851.
More Information

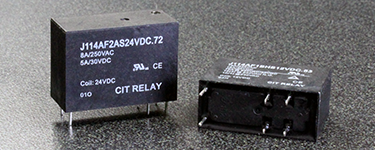

J114AF Series

With switching capacity up to 16A, the J114AF Series PC board relay offers F Class insulation standard with PC pin mounting. Contact arrangement options for this 16A relay are 1A, 1C, 2A or 2C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .53W or .72W. Dimensions are 29.0 x 12.7 x 20.0mm. Agency approval for this UL-approved relay is E197851.
More Information

J115F1 Series

The J115F1 Series relay offers heavy contact load with 30 to 50 amp versions. Also available in panel mount this PC pin mounted UL relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 31.7 x 26.9 x 20.3mm. This UL-approved relay is available with or without a dust cover. Agency approval is UL E197852 and TUV-certified.
More Information

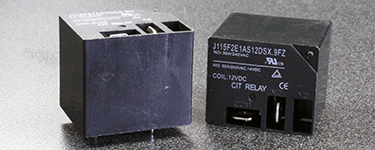

J115F2 Series

The J115F2 Series relay offers heavy contact load up to 40A and strong shock and vibration resistance in a light-weight and small size package. This PC pin mounted relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 31.9 x 26.8 x 28.1mm. The J115F2 is available with or without a dust cover and a low profile version. Agency approval is UL E197852 and T?V.
More Information

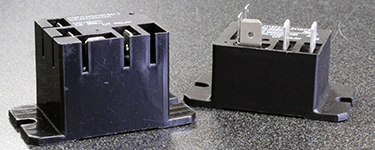

J115F3 Series

The J115F3 Series relay offers heavy contact load up to 40A and strong shock and vibration resistance in a light-weight and small size package. This panel mount relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 32.4 (50.0) x 26.8 x 28.1mm. The J115F3 offers mounting tabs and is available with a low profile version. Agency approval is UL E197852 and T?V.
More Information

J151 Series

The J151 Series is an ice cube style relay with switching capacity up to 20A. With low coil power consumption and high contact load, the J151 Series has strong resistance to shock and vibration. Contact arrangements include 1A, 2A, 3A, 4A, 1B, 2B, 3B, 4B, 1C, 2C, 3C, and 4C. Coil voltage ranges from 12VDC up to 240VAC with DC coil power options of .90W, 1.4W or 1.5W and AC coil power options of 1.2VA, 2.0VA or 2.5VA. The J151 offers PC pin or solder lug mounting options. Dimensions are dependent upon style choice with a flange option. UL Agency approval is E197852.
More Information

J152 Series

The J152 Series is an ice cube relay with switching capacity up to 10A. With low coil power consumption and high contact load, the J152 Series 10A switching relay has strong resistance to shock and vibration. Contact arrangements include 2A, 3A, 4A, 2B, 3B, 4B, 2C, 3C, and 4C. Coil voltage ranges from 12VDC up to 220VAC with DC coil power of .90W and AC coil power of 1.2VA. The J152 offers PC pin or solder lug mounting options. Dimensions are dependent upon style choice with a flange option. UL Agency approval is E197851.
More Information

Anti-Vandals

With sealing degree of IP67, CIT Relay & Switch Vandal-Resistant Switches are available in a variety of sizes from 12mm FH & GH Series up to the 40mm DH Series. Also available with UL approval in our AHU and DH22U Series, our IP67 switches offer both ring and dot illumination and non-illuminated options. Choose the EH Series anti-vandal switch for a rounded convex actuator or the AH, BH, CH or DH Series for a flat actuator. Choices of body and actuator color include stainless steel, nickel and anodized aluminum in black, red, yellow, green or blue, with LED bi-color options.
More Information

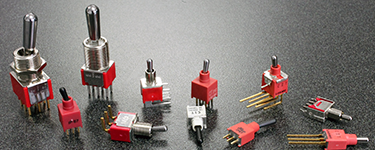

Toggle Switches

The CIT toggle switches are electromechanical switches that are operated by a type of handle or lever actuator. Among the most common types of switches, and available in many different sizes, toggle switches are used in many types of applications including consumer use but due the their exceptional durability, they are very often found in commercial and industrial applications. CIT offers standard and process sealed versions.
More Information

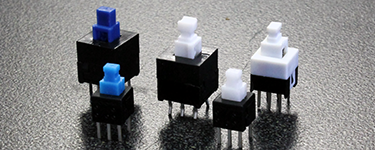

Pushbutton Switches

Typically used to close or open an electric circuit when pushed, the CIT family of push button switches offers micro, miniature, small and subminiature sizes with sealed, through-hole, right angle, and surface mount switch terminal options with a multitude of choices in cap styles. Our versatile illuminated push button switches provide several LED color choices. Bi-color LED choices make endless the combinations and applications for these popular switches
More Information

Tactile Switches

CIT Relay & Switch offers tactile switches with lighted, sealed, thru-hole, right angle and surface mount terminal options with a multitude of choices in cap styles, many of which are available with and without LED hole and several optional frames. Our extremely versatile tact switches provide design engineers with several LED color choices. Bi-color choices make endless the combinations and applications for these popular switches. Non-lighted versions are also available with multiple cap and frame color combinations. Process sealed versions are available.
More Information

Snap Action Switches

Frequently known as a micro switch, a snap-action switch is an electromechanical switch that is actuated by very little physical force, through the use of a tipping point mechanism. Snap-action micro switches can open and close an electrical circuit at a rapid speed, triggered by an external force. Offering two sizes, miniature and sub-minature, we will soon have an ultra sub-minature version available, contact factory. Sealed versions are available.
