Fluid Control

Relays and switches are highly used in the fluid control and dispensing equipment market. CIT Relay & Switch has a wide variety of both to suit these products and can be customized as needed.

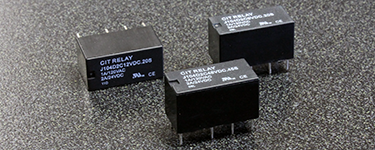

J104D Series

The J104D Series relay offers bifurcated contacts for high reliability with high sensitivity. Contacts rated at 2A. Conforming to FCC Part 68, this PC pin mounted relay offers 2C contact arrangement with coil voltage ranging from 3VDC up to 48VDC with coil power options of .15W, .20W, .36W or .45W. Dimensions are 20.4 x 10.5 x 11.0mm. UL Agency approval is E197851.
More Information

J107F Series

F Class insulation is standard on the J107F Series relay. Light-weight and small in size, the J107F Series is PC pin mountable with contact arrangement options of 1A, 1B, or 1C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .36W, .45W or .80W. The dimensions of the UL-approved relay are 19.0 x 15.5 x 15.3mm. UL Agency approval is E197851.
More Information

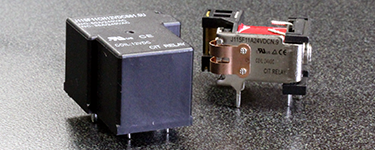

J115F1 Series

The J115F1 Series relay offers heavy contact load with 30 to 50 amp versions. Also available in panel mount this PC pin mounted UL relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 31.7 x 26.9 x 20.3mm. This UL-approved relay is available with or without a dust cover. Agency approval is UL E197852 and TUV-certified.
More Information

Snap-Action Switches

Frequently known as a micro switch, a snap-action switch is an electromechanical switch that is actuated by very little physical force, through the use of a tipping point mechanism. Snap-action micro switches can open and close an electrical circuit at a rapid speed, triggered by an external force. Offering two sizes, miniature and sub-minature, we will soon have an ultra sub-minature version available, contact factory. Sealed versions are available.
More Information

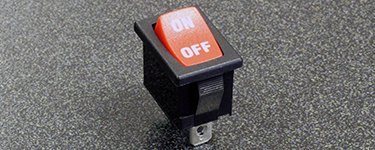

RA Series

The RA Series rocker switch offers an illuminated option with a choice of SPST or SPDT. Multiple switch function options are available with terminal options of quick connect/solder lug, PC pins, right angle PC pins or left angle PC pins. The versatile RA series panel mount rocker switch offers multiple housing color, actuator color and actuator marking color choices.
More Information

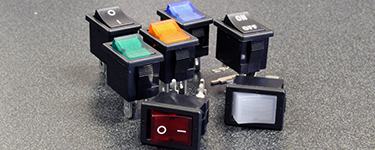

RC Series

The RC Series rocker switch offers an illuminated option with a choice of SPST or DPST. Multiple latching options are available with terminal options of quick connect/solder lug, PC pins, right angle PC pins or left angle PC pins. Switch function is Off-On. The versatile RC series offers multiple housing color, actuator color, including colored transparent, and actuator marking color choices.
More Information

Tactile Switches

CIT Relay & Switch offers tactile switches with lighted, sealed, thru-hole, right angle and surface mount terminal options with a multitude of choices in cap styles, many of which are available with and without LED hole and several optional frames. Our extremely versatile tact switches provide design engineers with several LED color choices. Bi-color choices make endless the combinations and applications for these popular switches. Non-lighted versions are also available with multiple cap and frame color combinations. Process sealed versions are available.
More Information
