Green Energy

Green Energy is a fast developing industry with heavy use of relays and switches. CIT Relay & Switch has a wide variety of relays and switches to suit these products and can customize as needed.

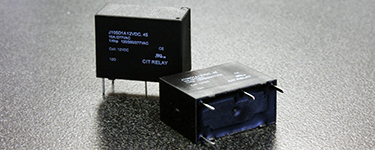

J105D Series

With switching capacity up to 10A, the J105D Series relay offers a small, light-weight package. This small relay features low coil power consumption with high contact load, contact arrangement is 1A or 1C with voltage options from 3VDC up to 24VDC. Coil Power options are .20W or .45W. The J105D Series dimensions are 20.59 x 10.15 x 15.75mm. UL Agency approval is E197851.
More Information

J107F Series

F Class insulation is standard on the J107F Series relay. Light-weight and small in size, the J107F Series is PC pin mountable with contact arrangement options of 1A, 1B, or 1C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .36W, .45W or .80W. The dimensions of the UL-approved relay are 19.0 x 15.5 x 15.3mm. UL Agency approval is E197851.
More Information

J115F1 Series

The J115F1 Series relay offers heavy contact load with 30 to 50 amp versions. Also available in panel mount this PC pin mounted UL relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 31.7 x 26.9 x 20.3mm. This UL-approved relay is available with or without a dust cover. Agency approval is UL E197852 and TUV-certified.
More Information

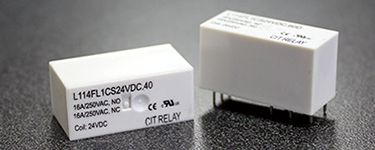

L114FL Series

With switching capacity up to 16A, the low profile latching L114FL Series relay offers PC pin mounting. Strong resistance to shock and vibration, the L114FL Series is designed to withstand heavy contact load. Available with single or double coil latching function, contact arrangement options are 1A or 1C. Coil voltage ranges from 3VDC up to 24VDC with coil power of .40W or .60W. Dimensions of this latching relay are 29.0 x 12.7 x 15.7mm. Agency approval for this cUL/UL relay is E197851.
More Information

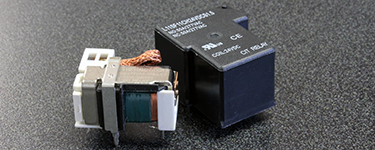

L115F1 Series

The latching L115F1 Series single coil latching relay offers heavy contact load in a light-weight and small size package. This PC pin mounted relay offers single coil latching with 1A, 1B or 1C contact arrangement. This 1A or 1C relay features a coil voltage ranging from 5VDC up to 48VDC with coil power of 90W or 1.5W. Dimensions are 26.9 x 31.7 x 20.3mm. The L115F1 is available with or without a dust cover. UL Agency approval is UL E197852.
More Information

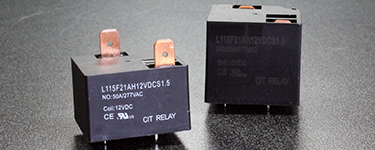

L115F2 Series

The L115F2 Series latching relay offers heavy contact load and strong shock and vibration resistance in a light-weight and small size package. This PC pin mounted relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 48VDC with coil power of .90W or 1.5W. Dimensions are 31.9 x 26.8 x 28.1mm. The L115F2 is available with or without a dust cover and a low profile version. UL Agency approval is UL E197852.
More Information

RA Series

The RA Series rocker switch offers an illuminated option with a choice of SPST or SPDT. Multiple switch function options are available with terminal options of quick connect/solder lug, PC pins, right angle PC pins or left angle PC pins. The versatile RA series panel mount rocker switch offers multiple housing color, actuator color and actuator marking color choices.
More Information

RW Series

The RW Series rocker switch offers an illuminated option with a choice of SPDT or DPDT. Multiple latching options are available with terminal options of quick connect/solder lug and multiple switch functions. Illumination options for the lighted rocker switch are neon or tungsten lamp. The versatile RW series offers multiple housing color, actuator color, including colored transparent, actuator markings, and actuator marking color choices.
More Information

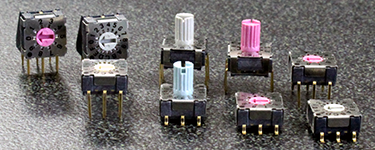

RD07 Series

The RD07 Series Coded Rotary DIP switch is IP67 process sealed in a sub-miniature package. 7mm in size, the RD07 Series IP67 rotary switch is available with three actuator style options in extended or recessed style. Offering three positions from 4 to 16, the RD07 is available with straight or gull wing termination. Packaging options for the process-sealed switch include tube or tape & reel.
More Information

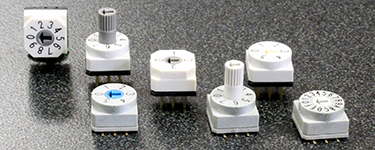

RD10 Series

The RD10 Series Coded Rotary DIP switch is an IP67 process sealed switch in a miniature package. The RD10 Series 10mm switch is available with two actuator style options in extended or recessed style. Offering five positions from 4 to 16, the RD10 rotary DIP encoder is available with straight or gull wing termination. Packaging options include tube or tape & reel.
More Information
