Railway

Relays and switches are commonly used in railway appications. From controls and communication to rail cars, CIT Relay & Switch has a wide variety of relays and switches to suit this wide ranging application and can be customized to fit your needs.

J151 Series

The J151 Series is an ice cube style relay with switching capacity up to 20A. With low coil power consumption and high contact load, the J151 Series has strong resistance to shock and vibration. Contact arrangements include 1A, 2A, 3A, 4A, 1B, 2B, 3B, 4B, 1C, 2C, 3C, and 4C. Coil voltage ranges from 12VDC up to 240VAC with DC coil power options of .90W, 1.4W or 1.5W and AC coil power options of 1.2VA, 2.0VA or 2.5VA. The J151 offers PC pin or solder lug mounting options. Dimensions are dependent upon style choice with a flange option. UL Agency approval is E197852.
More Information

J152 Series

The J152 Series is an ice cube relay with switching capacity up to 10A. With low coil power consumption and high contact load, the J152 Series 10A switching relay has strong resistance to shock and vibration. Contact arrangements include 2A, 3A, 4A, 2B, 3B, 4B, 2C, 3C, and 4C. Coil voltage ranges from 12VDC up to 220VAC with DC coil power of .90W and AC coil power of 1.2VA. The J152 offers PC pin or solder lug mounting options. Dimensions are dependent upon style choice with a flange option. UL Agency approval is E197851.
More Information

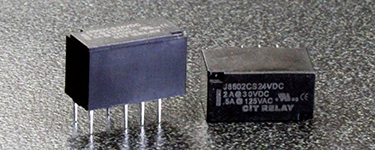

J860 Series

The J860 Series relay is an ultra-low profile, monostable relay. The contact arrangement is 2C with coil voltage ranging from 5VDC up to 24VDC and coil power of .14W. PC pin mounted, dimensions are 15.0 x 7.5 x 9.4mm. UL Agency approval is E197851.
More Information

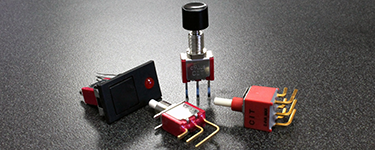

ANP Series

The miniature size ANP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the ANP offers numerous bushing options, cap styles and cap colors.
More Information

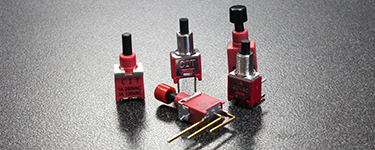

BNP Series

The sub-miniature size BNP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the BNP offers numerous bushing options, cap styles and cap colors.
More Information
