Security

Relays and switches are commonly used in security and safety equipment. From access control systems and monitoring equipment to intrusion and fire detection equipment, CIT Relay & Switch has a wide variety of relays and switches to suit these wide ranging applications and can be customized to fit your needs.

J115F1 Series

The J115F1 Series relay offers heavy contact load with 30 to 50 amp versions. Also available in panel mount this PC pin mounted UL relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 31.7 x 26.9 x 20.3mm. This UL-approved relay is available with or without a dust cover. Agency approval is UL E197852 and TUV-certified.
More Information

J115F2 Series

The J115F2 Series relay offers heavy contact load up to 40A and strong shock and vibration resistance in a light-weight and small size package. This PC pin mounted relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 31.9 x 26.8 x 28.1mm. The J115F2 is available with or without a dust cover and a low profile version. Agency approval is UL E197852 and T?V.
More Information

J115F3 Series

The J115F3 Series relay offers heavy contact load up to 40A and strong shock and vibration resistance in a light-weight and small size package. This panel mount relay offers 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 277VAC with DC coil power of .60W or .90W and AC coil power of .2VA. Dimensions are 32.4 (50.0) x 26.8 x 28.1mm. The J115F3 offers mounting tabs and is available with a low profile version. Agency approval is UL E197852 and T?V.
More Information

J107F Series

F Class insulation is standard on the J107F Series relay. Light-weight and small in size, the J107F Series is PC pin mountable with contact arrangement options of 1A, 1B, or 1C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .36W, .45W or .80W. The dimensions of the UL-approved relay are 19.0 x 15.5 x 15.3mm. UL Agency approval is E197851.
More Information

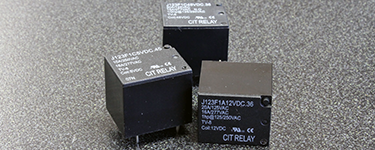

J123F Series

Designed to withstand high in-rush and rated up to 20A, the small size J123F Series relay makes it a great choice. The J123F 1000W lamp relay offers contact arrangement or 1A or 1C. Coil voltages for this UL-approved relay range from 5VDC up to 48VDC with coil power of .36W or .45W. Dimensions are 19.5 x 16.1 x 17.1mm. UL Agency approval is E197852.
More Information

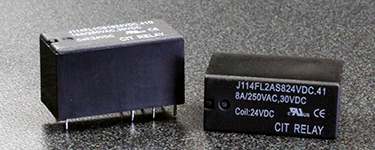

J114FL Series

With switching capacity up to 16A, the low profile J114FL Series relay offers F Class insulation standard with PC pin mounting. Contact arrangement options are 1A, 1C, 2A or 2C. Coil voltage ranges from 5VDC up to 48VDC with coil power of .41W. Dimensions are 29.0 x 12.6 x 15.70mm. UL Agency approval is E197851.
More Information

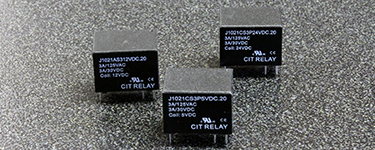

J102 Series

The J102 Series relay offers high sensitivity in a super light-weight package. With PC pin mounting, the J102 Series is ideal for high density mounting with dimensions of 15.5 x 10.5 x 11.25mm. Contact arrangement options are 1A, 1B, or 1C. Relay coil voltage choices range from 3VDC up to 24VDC with coil power options of .20W, .36W or .45W. UL Agency approval for this UL Agency approved relay is E197851.
More Information

Anti-Vandals

With sealing degree of IP67, CIT Relay & Switch Vandal-Resistant Switches are available in a variety of sizes from 12mm FH & GH Series up to the 40mm DH Series. Also available with UL approval in our AHU and DH22U Series, our IP65 switches offer both ring and dot illumination and non-illuminated options. Choose the EH Series anti-vandal switch for a rounded convex actuator or the AH, BH, CH or DH Series for a flat actuator. Choices of body and actuator color include stainless steel, nickel and anodized aluminum in black, red, yellow, green or blue, with LED bi-color options.
More Information

ME Series

The ME Series is an IP67 process sealed tactile switch offering both through-hole and surface mount options with a 350gF actuation force. With actuator and housing of PA6T Polymide and silver plated stainless steel dome contact, the ME Series uses a silicon rubber internal seal providing truly sealed, one piece construction. Actuator color is standard black; contact factory for additional color options.
More Information

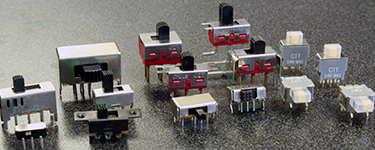

Slide Switches

With standard, ultra-miniature, and miniature slide switches in our collection, many CIT slide switches are used on a variety of applications. Function ranges from SPDT up to 4P3T, with the switch manufacturing options of right angle mounting and choices of actuator lengths. Most common applications of a slide switch includes consumer electronics, computer peripherals, industrial controls, and test equipment, among many others.
More Information

AD Series

The illuminated AD Series offers a complete switch solution for all your audio panel needs. Long travel of 4.5mm (standard) for AD01 or shorter travel of 3.5mm on the AD02, actuation force of 250gF. Contacts with gold plating on the SPST NO push button switch assure high reliability and long life of 5,000,000 operations typically. Also offering a large variety of lens and diffuser options, color choices for the LED push button switch are red, green, yellow, blue, and white with many combinations of the same available. Actuator styles of the illuminated switch include 10mm, 12mm, 15mm or 17.4mm square, sculptured, flat or home key type.
More Information

DIP Switches

CIT Relay & Switch offers the low cost K Series family of DIP switches. Offering both extended and recessed actuators, the K Series standard, half pitch, right angle, and low profile DIP switches are available in through-hole, Gull Wing and J Lead termination. Positions range from 01 to 12. Most of the K Series family are compatible with SMT assembly and infrared reflow & automatic wave soldering. Packaging options include tape and reel or tube. Top tape seal is offered with the recessed actuators.
More Information

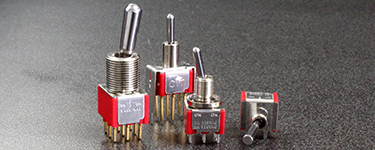

ANT Series

Available up to 4PDT with numerous functions, the ANT Series miniature toggle switch offers multiple latching options. Terminal options include solder lug, PC pin, quick connect, horizontal mount right angle PC pin or snap-in bracket, vertical mount right angle PC in or snap-in bracket, PC pin support bracket or snap-in support bracket. The ANT Series offers many bushing options with actuator length ranging from 5.08mm up to 26.3mm. Multiple actuator covers with choices in cover colors are also available.
More Information

SM3 Series

Sub-miniature in size, the SM3 Series snap-action switch is UL/cUL certified. Actuator styles of this micro switch include pin plunger, simulated roller, short roller lever, long hinge lever and the standard hinge lever. The SM3 Series offers terminal options of .100? quick connect, solder lug, PC pin, right angle PC pin or left angle PC pin. Single pole switching options include SPST normally open, SPST normally closed, or SPDT.
More Information

VM3 Series

The VM3 Series miniature snap-action switch is a UL/cUL certified panel mount switch. Actuator styles include pin plunger, standard roller lever, simulated roller lever, short hinge lever, short roller lever, long hinge lever and standard hinge lever. The VM3 Series silver plated copper alloy switch offers terminal options of .250? quick connect or .187? quick connect. Pole options include SPST normally open, SPST normally closed or SPDT.
More Information
