White Goods

Relays and switches are commonly used in white goods applications. From controls to instrumentation, CIT Relay & Switch has a wide variety of relays and switches to suit these wide ranging applications and can be customized to fit your needs.

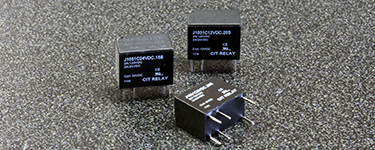

J103 Series

The J103 Series relay conforms to FCC Part 68. Highly sensitive, the J103 offers low coil power consumption in a small, light-weight package with PC pin mounting. Dimensions are 12.5 x 7.5 x 10.0mm. Contact arrangement is 1C with coil voltage choices ranging from 3VDC up to 24VDC and coil power options of .15W or .20W. UL Agency approval is E197851.
More Information

J105D Series

With switching capacity up to 10A, the J105D Series relay offers a small, light-weight package. This small relay features low coil power consumption with high contact load, contact arrangement is 1A or 1C with voltage options from 3VDC up to 24VDC. Coil Power options are .20W or .45W. The J105D Series dimensions are 20.59 x 10.15 x 15.75mm. UL Agency approval is E197851.
More Information

J107F Series

F Class insulation is standard on the J107F Series relay. Light-weight and small in size, the J107F Series is PC pin mountable with contact arrangement options of 1A, 1B, or 1C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .36W, .45W or .80W. The dimensions of the UL-approved relay are 19.0 x 15.5 x 15.3mm. UL Agency approval is E197851.
More Information

Tactile Switches

CIT Relay & Switch offers tactile switches with lighted, sealed, thru-hole, right angle and surface mount terminal options with a multitude of choices in cap styles, many of which are available with and without LED hole and several optional frames. Our extremely versatile tact switches provide design engineers with several LED color choices. Bi-color choices make endless the combinations and applications for these popular switches. Non-lighted versions are also available with multiple cap and frame color combinations. Process sealed versions are available.
More Information

CL1200 Series

Offering surface mount, through-hole and right angle mounting, the CL1200 Series is a momentary SPST tactile switch. Available with actuation force of 160 +/- 50gf and actuator travel of 0.25 +/- .1mm, the CL1200 Series is available as a square tactile switch with LED hole, round, and round switch with LED hole actuator styles in a multitude of colors. Bi-color LED options are red, green, yellow, blue, white, orange and RGB. Optional frames in round and square are also available for the CL1200 series illuminated switch.
More Information

ME Series

The ME Series is an IP67 process sealed tactile switch offering both through-hole and surface mount options with a 350gF actuation force. With actuator and housing of PA6T Polymide and silver plated stainless steel dome contact, the ME Series uses a silicon rubber internal seal providing truly sealed, one piece construction. Actuator color is standard black; contact factory for additional color options.
More Information

Slide Switches

With standard, ultra-miniature, and miniature slide switches in our collection, many CIT slide switches are used on a variety of applications. Function ranges from SPDT up to 4P3T, with the switch manufacturing options of right angle mounting and choices of actuator lengths. Most common applications of a slide switch includes consumer electronics, computer peripherals, industrial controls, and test equipment, among many others.
More Information
