J102 Series UL Approved Relay
The J102 Series relay offers high sensitivity in a super light-weight package. With PC pin mounting, the J102 Series is ideal for high density mounting with dimensions of 15.5 x 10.5 x 11.25mm. Contact arrangement options are 1A, 1B, or 1C. Relay coil voltage choices range from 3VDC up to 24VDC with coil power options of .20W, .36W or .45W. UL Agency approval for this UL-approved relay is E197851.
Features |
Datasheet in PDF |
|
| Highly Sensitive Relay Super Light Weight Low Coil Power Consumption PC Board Mounting Ideal for High Density Mounting |
|
 |
| Contact Rating |
AgNi: 3A & 5A@125VAC General Purpose 3A & 5A@30VDC Resistive Ag: 1A & 3A@120VAC General Purpose 1A & 3A@30VDC Resistive Pilot Duty 270VA 120VAC |
|
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| 15.5 x 10.5 x 11.25 | 1A, 1B, 1C | AgNi + Au, Ag + Au | 3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC | .20W, .36W, .45W | < 50m Ohm |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
| 100M Ohm @ 500VDC | 100K cycles | 10M cycles | Contact-to-Contact: 500V rms Contact-to-Coil: 1250V rms |
| Operating Temperature | Mounting Methods | Agency Approvals |
| -40C to 85C | PC Pin | E197851 |

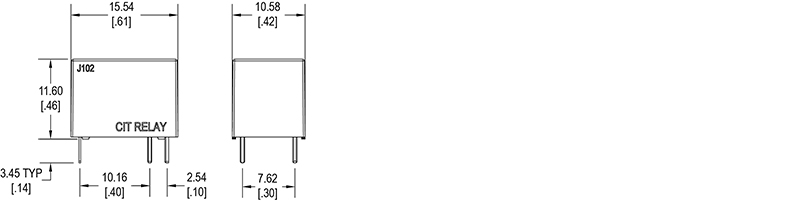

Dimensional Drawing

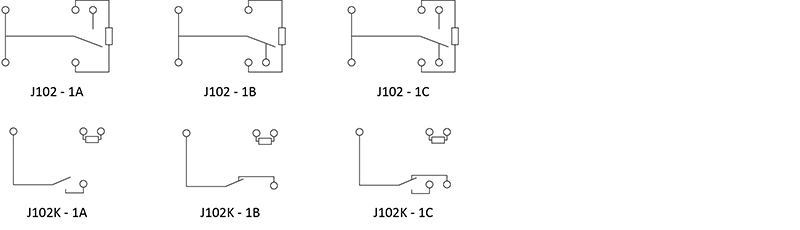

Schematic

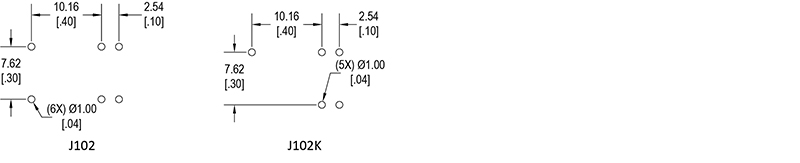

PC Board Layout
