J114AF Series UL Approved Relay
With switching capacity up to 16A, the J114AF Series PC board relay offers F Class insulation standard with PC pin mounting. Contact arrangement options for this 16A relay are 1A, 1C, 2A or 2C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .53W or .72W. Dimensions are 29.0 x 12.7 x 20.0mm. Agency approval for this UL-approved relay is E197851.
Features |
Datasheet in PDF |
|
| Switching Capacity up to 16A 20mm Height PC Board Mounting F Class Insulation Standard UL/cUL Certified Electrical Relay |
|
 |
| Contact Rating |
1A & 1C: 16A@250VAC & 30VDC Resistive 70C 1AH & 1CH: 16A@240VAC & 30VDC Resistive 2A & 2C: 8A@250VAC Resistsive 70C 5A@30VDC Resistive 70C |
|
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| 29.0 x 12.7 x 20.0 | 1A, 1C, 2A, 2C | AgSnO2 | 3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 15VDC, 24VDC, 48VDC | .53W, .72W | < 50m Ohm |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
| 100M Ohm @ 500VDC | 100K cycles | 10M cycles | Contact-to-Contact: 1000V rms Contact-to-Coil: 5000V rms |
| Operating Temperature | Mounting Methods | Agency Approvals |
| -55C to 105C | PC Pin | E197851 |

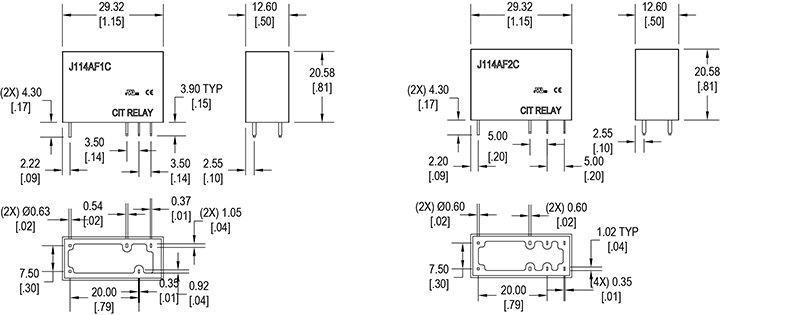

Dimensional Drawing

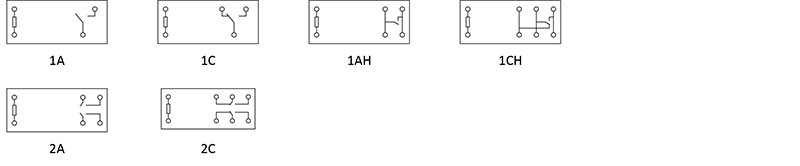

Schematic

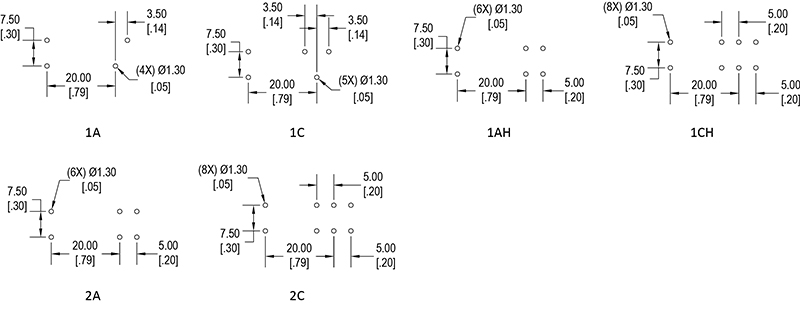

PC Board Layout
