J114FL Series UL Approved Relay
With switching capacity up to 16A, the low profile J114FL Series relay offers F Class insulation standard with PC pin mounting. Contact arrangement options are 1A, 1C, 2A or 2C. Coil voltage ranges from 5VDC up to 48VDC with coil power of .41W. Dimensions are 29.0 x 12.6 x 15.70mm. This UL relay's agency approval is E197851.
Features |
Datasheet in PDF |
|
| Switching Capacity up to 16A Low Profile Relay F Class Insulation Standard UL/cUL Certified |
|
 |
| Contact Rating |
12A Contact Single Pole .41W Coil Power: NO & NC 12A@250VAC/30VDC Resistive 6K cycles 16A Contact Single Pole .41W Coil Power: NO 16A@250VAC/30VDC Resistive 6K cycles 16A@277VAC Resistive 100K cycles NC 16A@250VAC/30VDC Resistive 6K cycles 8A Contact S |
|
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| 29.0 x 12.6 x 15.7 | 1A, 1C, 2A, 2C | AgSnO2 | 5VDC, 6VDC, 9VDC, 12VDC, 24VDC, 48VDC | .41W, .53W | < 50m Ohm |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
| 100M Ohm @ 500VDC | 100K cycles | 10M cycles | Contact-to-Contact: 1000V rms Contact-to-Coil: 5000V rms |
| Operating Temperature | Mounting Methods | Agency Approvals |
| -55C to 105C | PC Pin | E197851 |

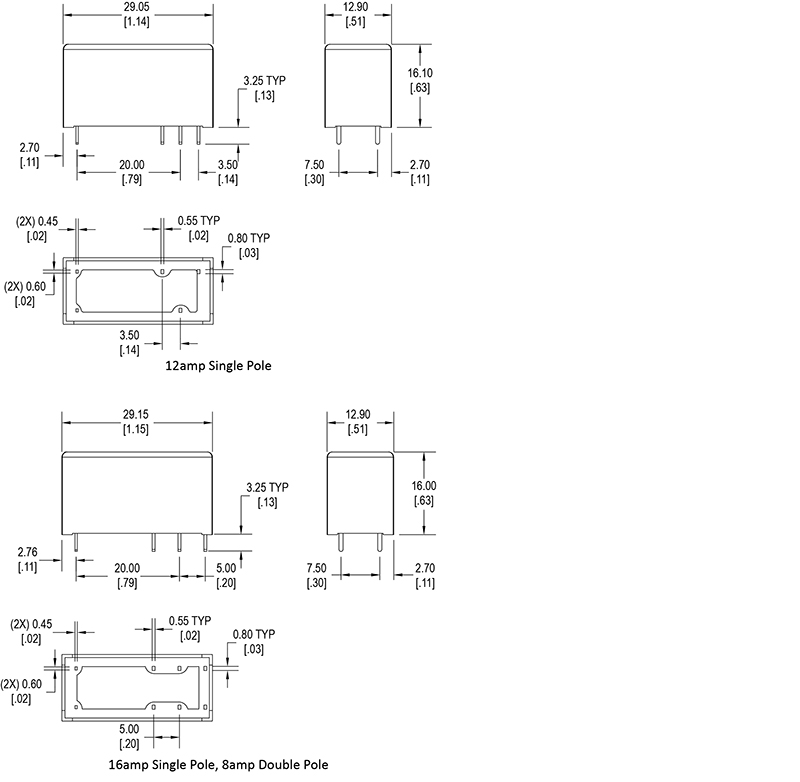

Dimensional Drawing

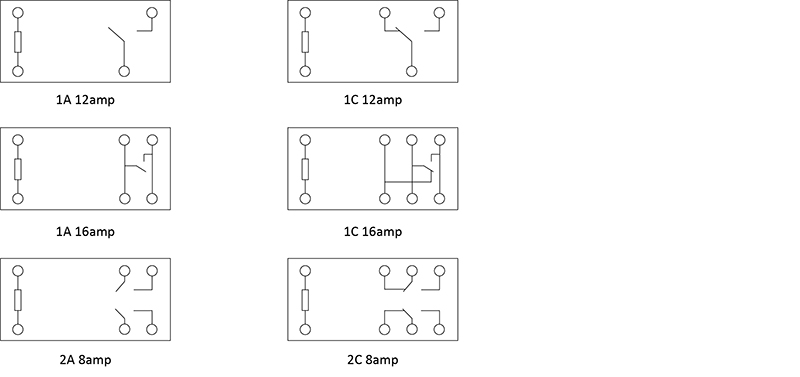

Schematic

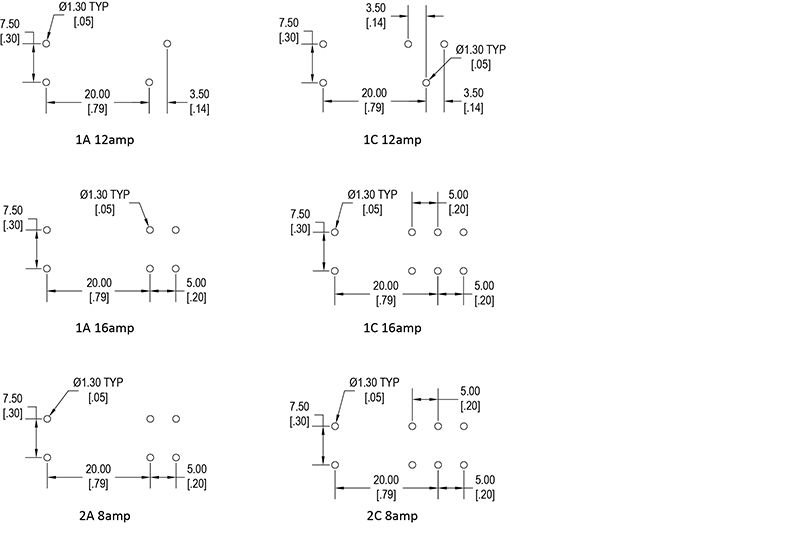

PC Board Layout
