J115F 50amp Series UL Approved Relay
The J115F 50amp Series relays offer heavy contact load and strong shock and vibration resistance in a light-weight and small size package. These relays offer 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 110VAC with coil power of 1.5W. Dimensions depend upon the style option chosen, including PC pin, low profile and mounting tab versions. Agency approval for this UL relay is E197852.
Features |
Datasheet in PDF |
|
| 50 Amp Relay Light Weight and Small Size Low Coil Power Heavy Contact Load Multiple Enclosure Options Low Profile Option |
 |
 |
| Contact Rating |
NO: 50A@240VAC NC: 35A@240VAC |
|
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| 21.5 x 15.8 x 16.5 | 1A, 1B, 1C | AgSnO2, AgSnO2In2O3 | 5VDC, 9VDC, 12VDC, 24VDC, 48VDC, 24VAC, 120VAC, 220VAC, 240VAC, 277VAC | .9W, 1.5W, 2.7VA | < 30m Ohm |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
| 100M Ohm @ 500VDC | 100K cycles | 10M cycles | Contact-to-Contact: 1500V rms Contact-to-Coil: 2500V rms & 4000V rms |
| Operating Temperature | Mounting Methods | Agency Approvals |
| -55C to 125C | PC Pin, Panel Mount | E197852 |
Dimensional Drawing

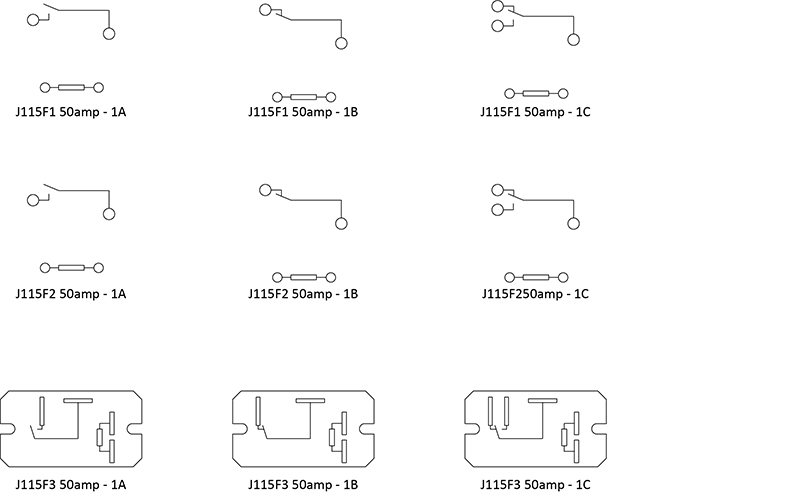

Schematic

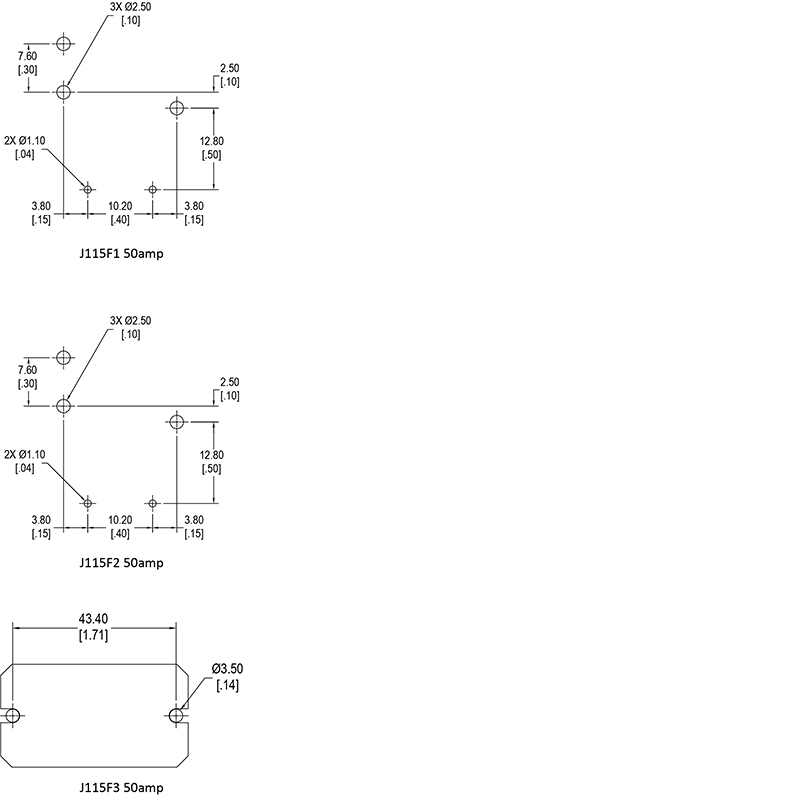

PC Board Layout
