Series Relay
The J115F_E Series relays are economical, with switching capacity up to 30A. Offering heavy contact load and strong shock and vibration resistance in a light-weight and small size package, these small 30a relays offer 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 110VDC with coil power options of .60W or .90W. Dimensions depend upon the style option chosen, including PC pin, low profile, mounting tab versions and with or without dust cover. Relay is TUV and UL E197852 certified.
Features |
Datasheet in PDF |
|
| 30A Economical Version Light Weight and Small Size Low Coil Power Consumption Strong Shock & Vibration Resistance UL/cUL and TUV Certified |
|
|
| Contact Rating | ||
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
Contact-to-Contact: Contact-to-Coil: |
| Operating Temperature | Mounting Methods | Agency Approvals |

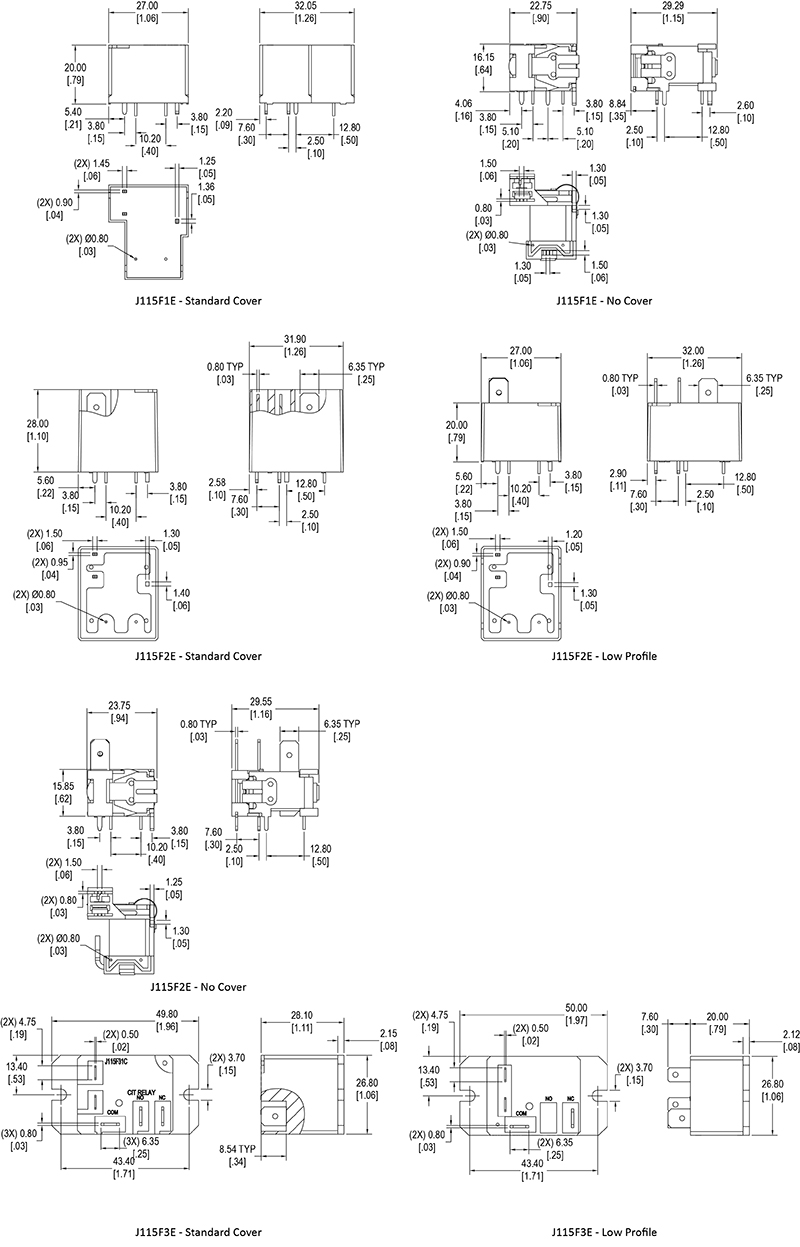

Dimensional Drawing

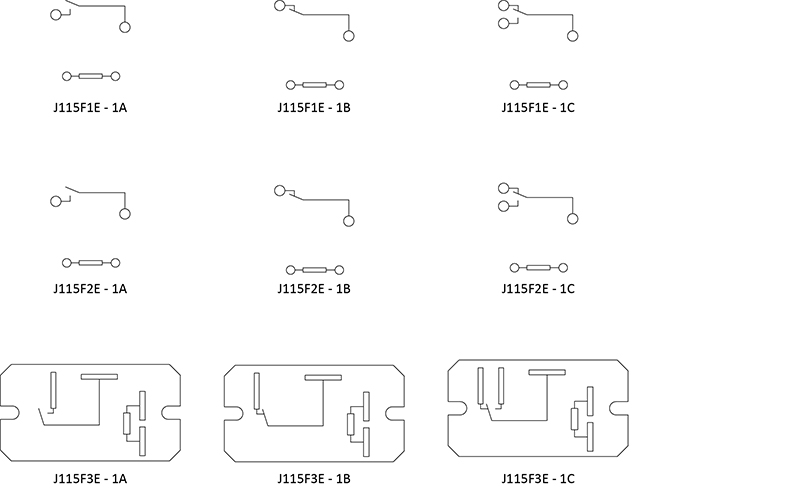

Schematic

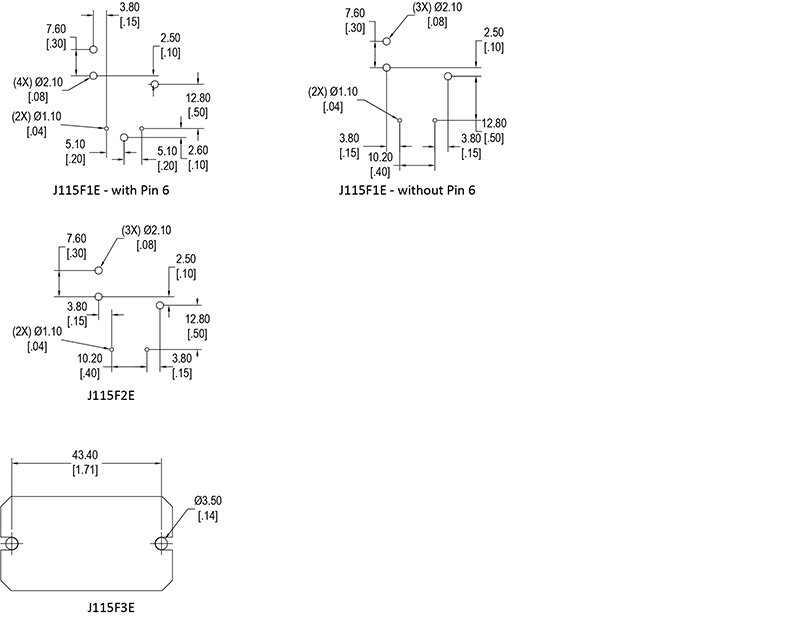

PC Board Layout
