PC323 Series UL Approved Relay



Features	Datasheet in PDF
Subminiature PCB Telecom Relay Bifurcated Crossbar Contacts 0.30 inch 16 Pin DIL Package Meets FCC part 68 Voltage Surge



Contact Rating

3A@30VDC resistive 2A@30VDC resistive .6A@125VAC resistive



Dimensions	Contact Arrangement	Contact Material	Coil Voltage	Coil Power	Contact Resistance
20.5 x 10.2 x 12.5	2C	AgNi + Au	5VDC, 9VDC, 12VDC, 24VDC, 48VDC		< 50m Ohm





Insulation Resistance	Electrical Life	Mechanical Life	Dielectric Strength
100M Ohm min. at 500VDC	100K cycles	10M cycles	Contact-to-Contact: 1500V rms Contact-to-Coil: 1000V rms





Operating Temperature	Mounting Methods	Agency Approvals
-40?C to 85?C	PC Pin	E86876

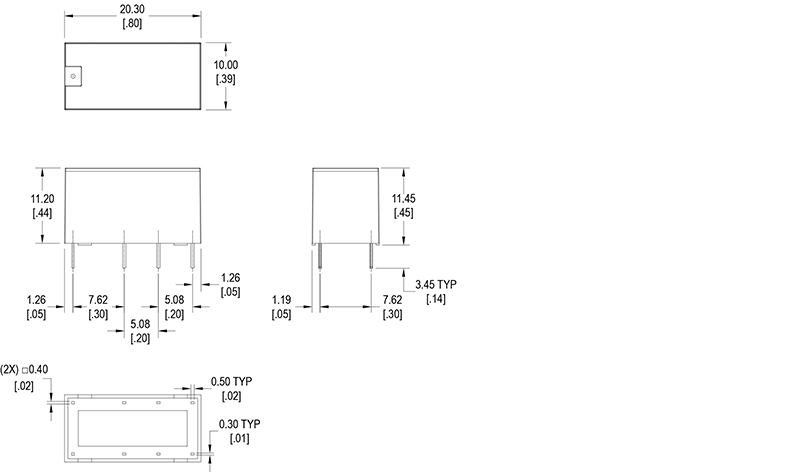

Dimensional Drawing

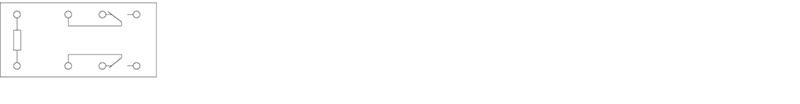

Schematic

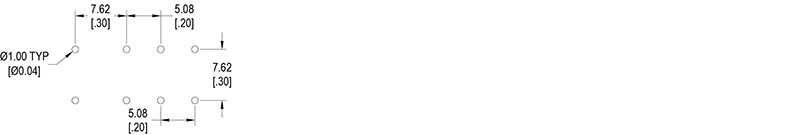

PC Board Layout
