ANP Series Pushbutton Switch
The miniature size ANP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the ANP offers numerous bushing options, cap styles and cap colors.
Features |
Datasheet in PDF |
|
| Mini Pushbutton Switch Wide Variety of Terminals Panel Mount Gold Contacts Available |
 |
 |
| Classifications | Right Angle Illuminated Panel Mount, Through-Hole | |

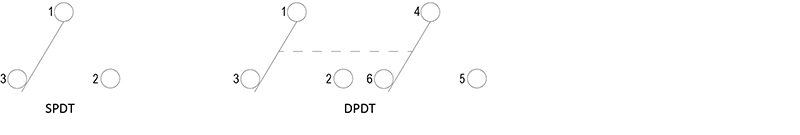

Number Of Poles
SPDT, DPDT
Latching Option
Momentary, Latching
Terminal Options
Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle, Vertical Mount Right Angle, PC Pin with Support Bracket, Snap-In Support Bracket
Electrical Ratings
3A@120VAC, 1A@250VAC
Seal
Epoxy
Electrical Life
50,000 cycles
Contact Resistance
<= 20mOhm initial
Actuation Travel
0.85 +/- .2mm
Dielectric Strength Contact To Contact
1500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
6/6 Nylon Glass Filled
Housing Materials
Diallyl Phthalate (DAP)
Contacts Materials
Silver Plated Brass
Terminals Materials
Silver Plated Brass
Bushing Material
Nickel Plated Brass
Cover Material2
Stainless Steel
Bushing Options
6.35mm Non-Threaded Keyway, 6.35mm Non-Threaded Flat
Frame Styles
Snap-In Panel Mount with Frame
Cap Styles
C73, C74, C75, C76, C77, F75, F76
Cap Colors
Contact Factory

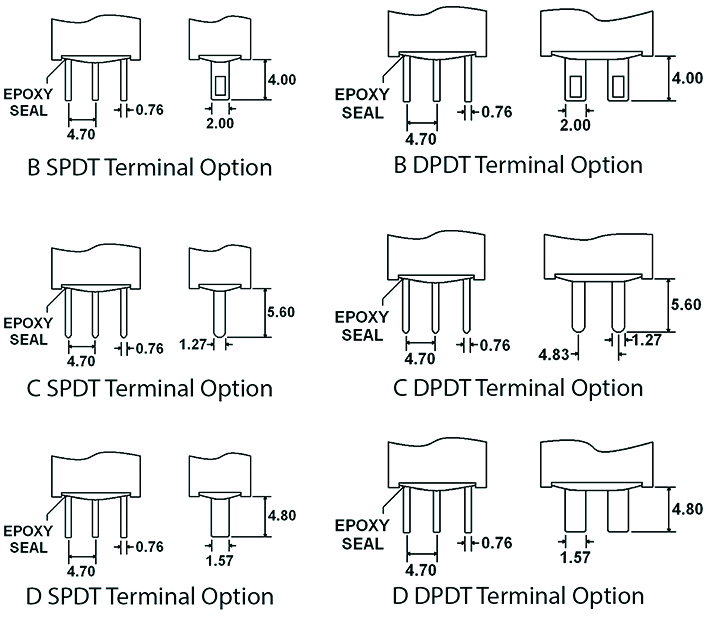

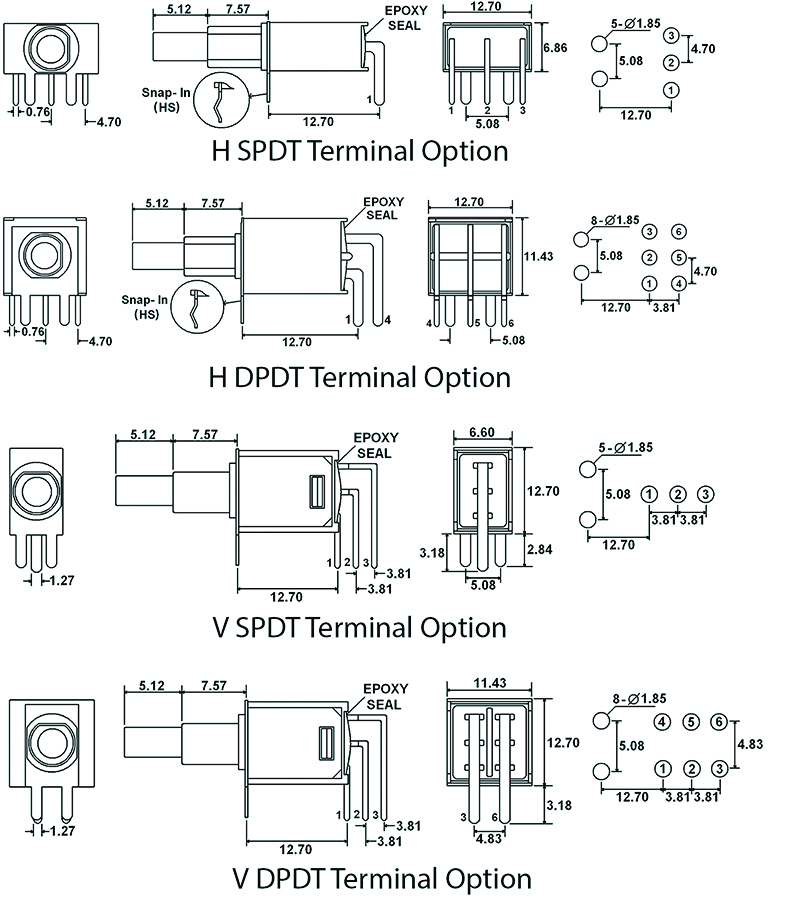

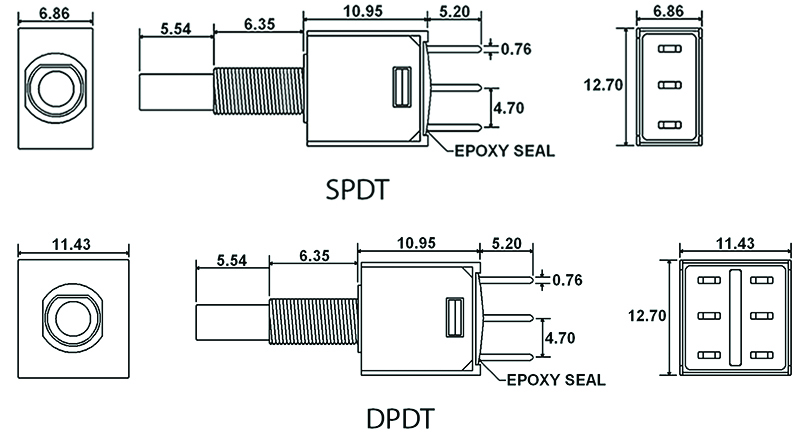

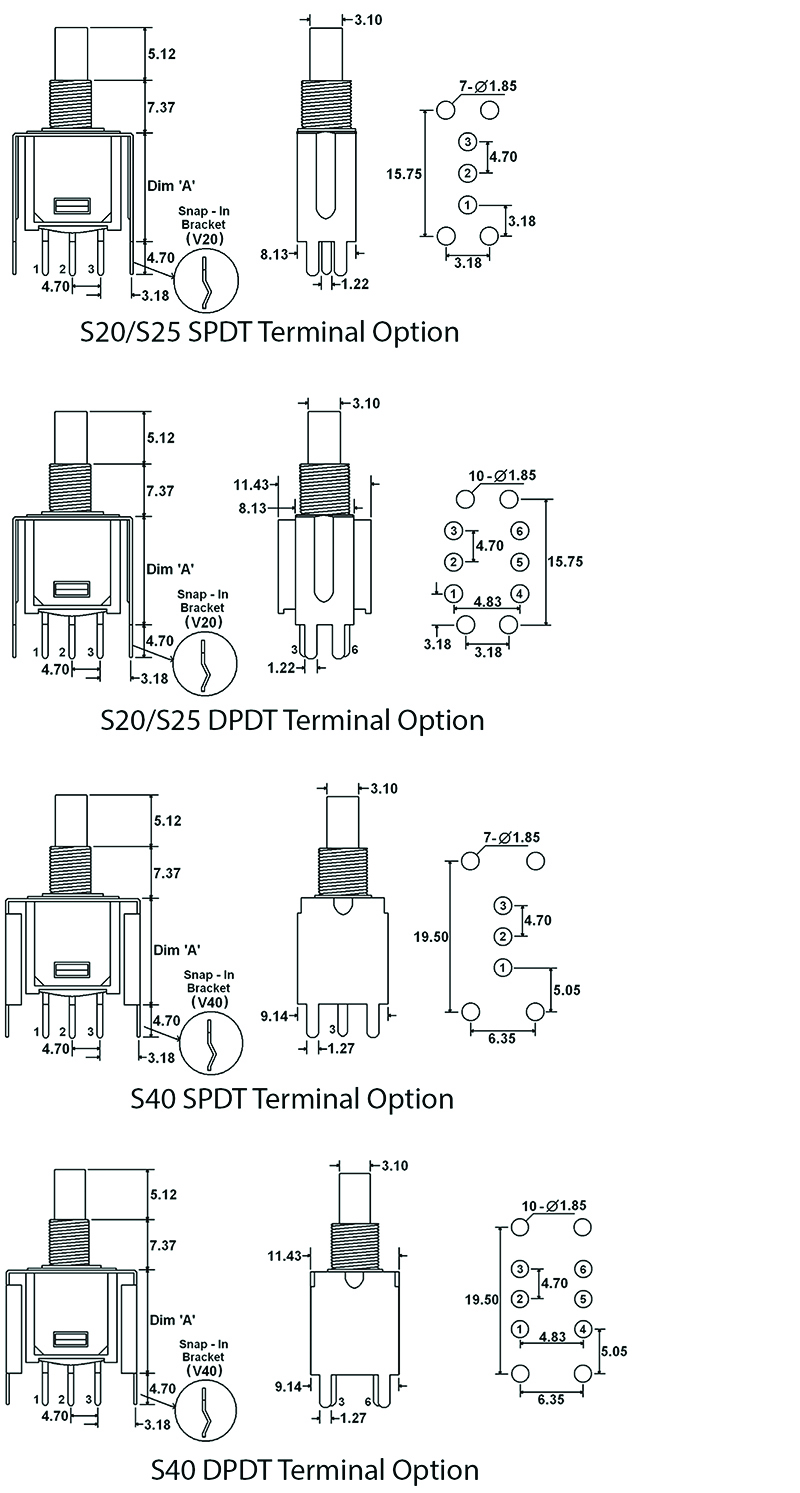

Dimensional Drawing
