ASP Series Pushbutton Switch
Miniature in size and IP67 process sealed, the ASP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the ASP offers numerous bushing options, cap styles and cap colors.
Features |
Datasheet in PDF |
|
| Miniature Size IP67 Sealing Degree Wide Variety of Terminals Panel Mount Switch Gold Contacts Available |
 |
 |
| Classifications | Right Angle Panel Mount, Through-Hole Sealed | |
Number Of Poles
SPDT, DPDT
Latching Option
Momentary
Terminal Options
Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle, Vertical Mount Right Angle, PC Pin with Support Bracket, Snap-In Support Bracket
Electrical Ratings
3A@120VAC, 3A@28VDC, 1A@250VAC
Sealing Degree
IP67, Process Sealed
Electrical Life
50,000 cycles
Contact Resistance
<= 20mOhm initial
Dielectric Strength Contact To Contact
1500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
4/6 Nylon Glass Filled, UL94V-0
Housing Materials
4/6 Nylon Glass Filled, UL94V-0
Contacts Materials
Silver Plated Copper Alloy, Gold Plated Copper Alloy
Terminals Materials
Silver Plated Copper Alloy, Gold Plated Copper Alloy
Support Bracket Material
Tin Plated Steel
Bushing Options
8.80mm Threaded, 6.35mm Non-Threaded
Cap Styles
C73, C74, C75, C76, C77
Cap Colors
Contact Factory

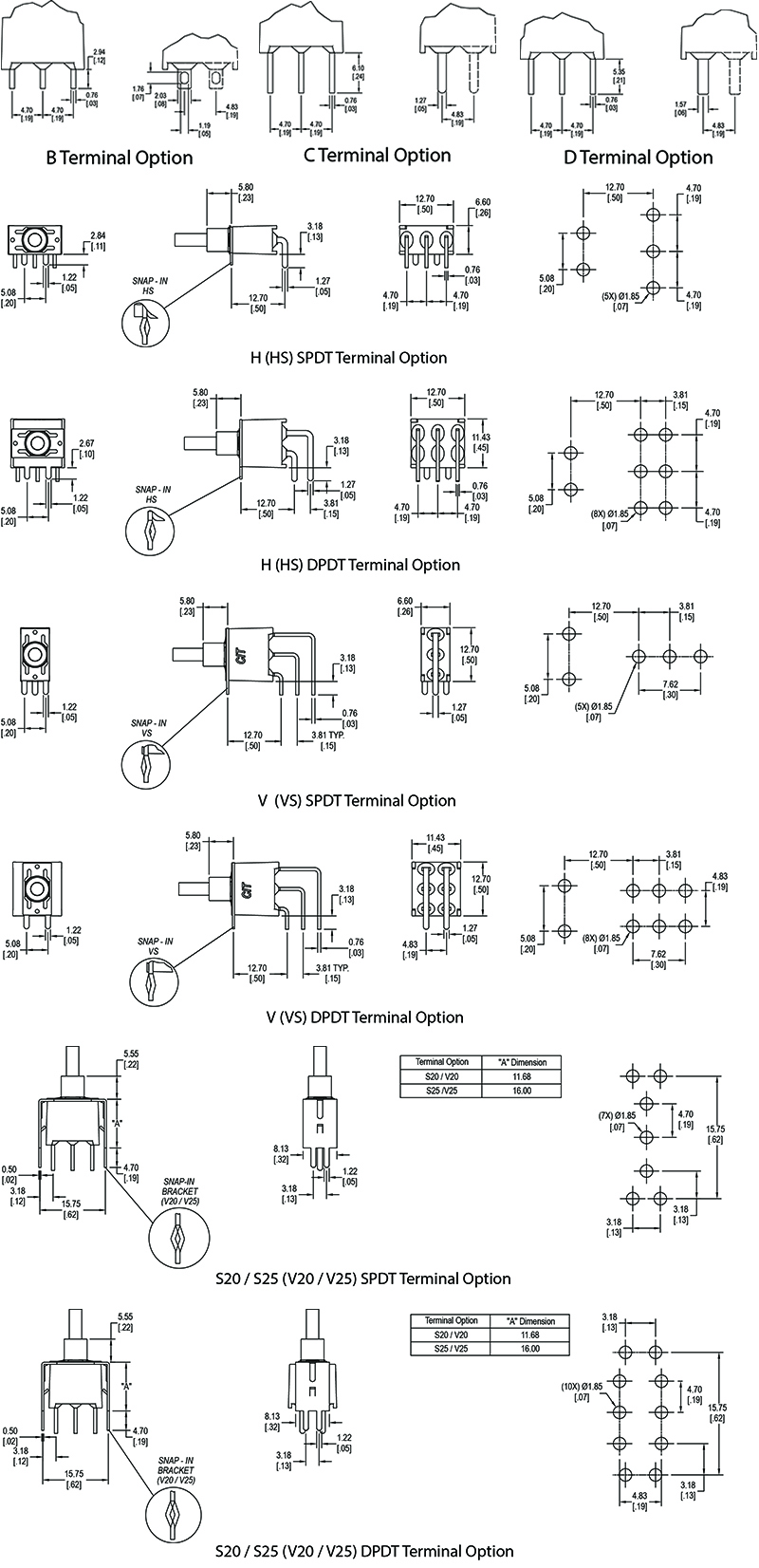

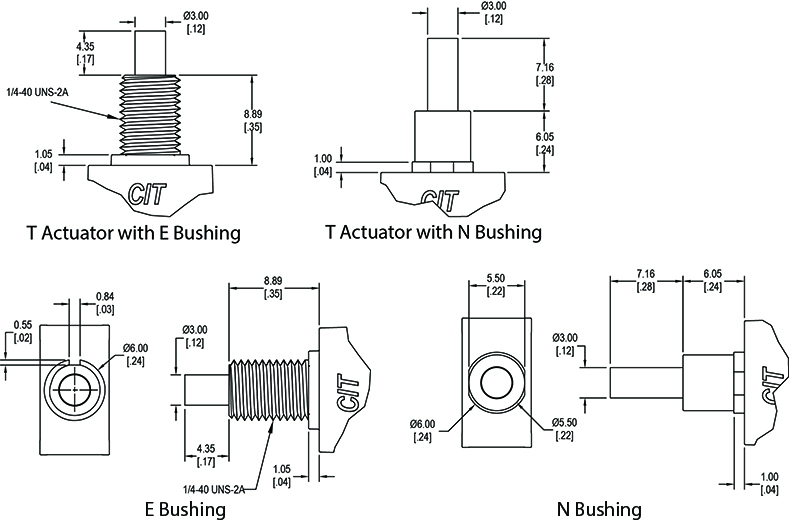

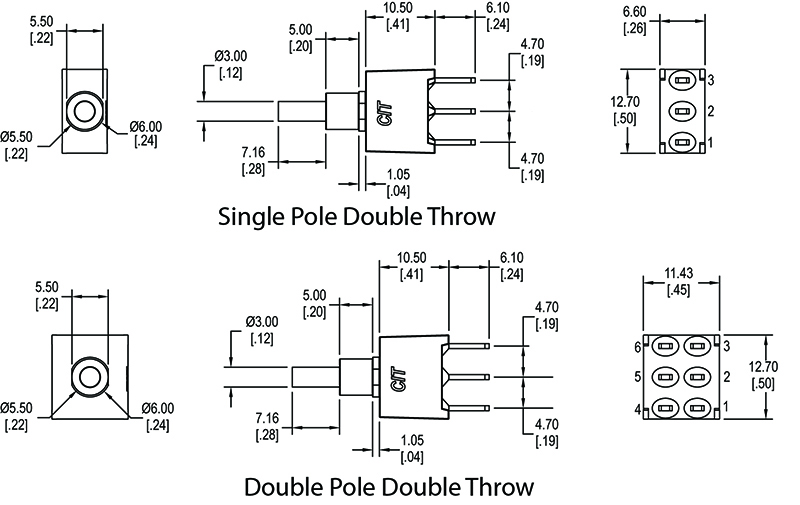

Dimensional Drawing
