ASR Series Rocker Switch
The ASR Series is an IP67 process sealed miniature rocker switch offering up to 3PDT with 6 functions. A wide variety of actuator styles are offered and terminal options include solder lug, PC pin, quick connect, horizontal mount right angle PC pin, vertical mount right angle PC pin, PC pin support bracket and snap-in support bracket. Gold contacts are also available.
Features |
Datasheet in PDF |
|
Miniature Size Rocker Switch IP67 Sealing Degree Up to 4 Poles with 6 Functions Wide Variety of Actuator Styles Gold Contacts Available |
![]() |
![]() |
Classifications | Right Angle Panel Mount, Through-Hole Sealed |
Number Of Poles
SPDT, DPDT, 3PDT
Latching Option
Multiple
Actuator Styles
Rocker PC/Panel Mount, Paddle PC/Panel Mount, Rocker PC Mount
Terminal Options
Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin, PC Pin Support Bracket, Snap-In Support Bracket
Switch Function
On-None-On, On-None-(On), On-Off-On, (On)-Off-(On), On-Off-(On), On-On-On
Electrical Ratings
5A@120VAC, 5A@28VDC, 2A@250VAC
Sealing Degree
IP67, Process Sealed
Electrical Life
30,000 cycles
Contact Resistance
<= 50mOhm initial
Dielectric Strength Contact To Contact
1500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
6/6 Nylon Glass Filled, UL94V-0
Housing Materials
6/6 Nylon Glass Filled, UL94V-0
Contacts Materials
Silver Plated Copper Alloy, Gold Plated Copper Alloy
Terminals Materials
Silver Plated Copper Alloy, Gold Plated Copper Alloy
Support Bracket Material
Tin Plated Brass
Actuator Color
White, Black, Red, Orange, Yellow, Green, Blue, Brown, Gray
Actuator Marking
A, B, C, D, E, F, G
Actuator Marking Color
Black, White

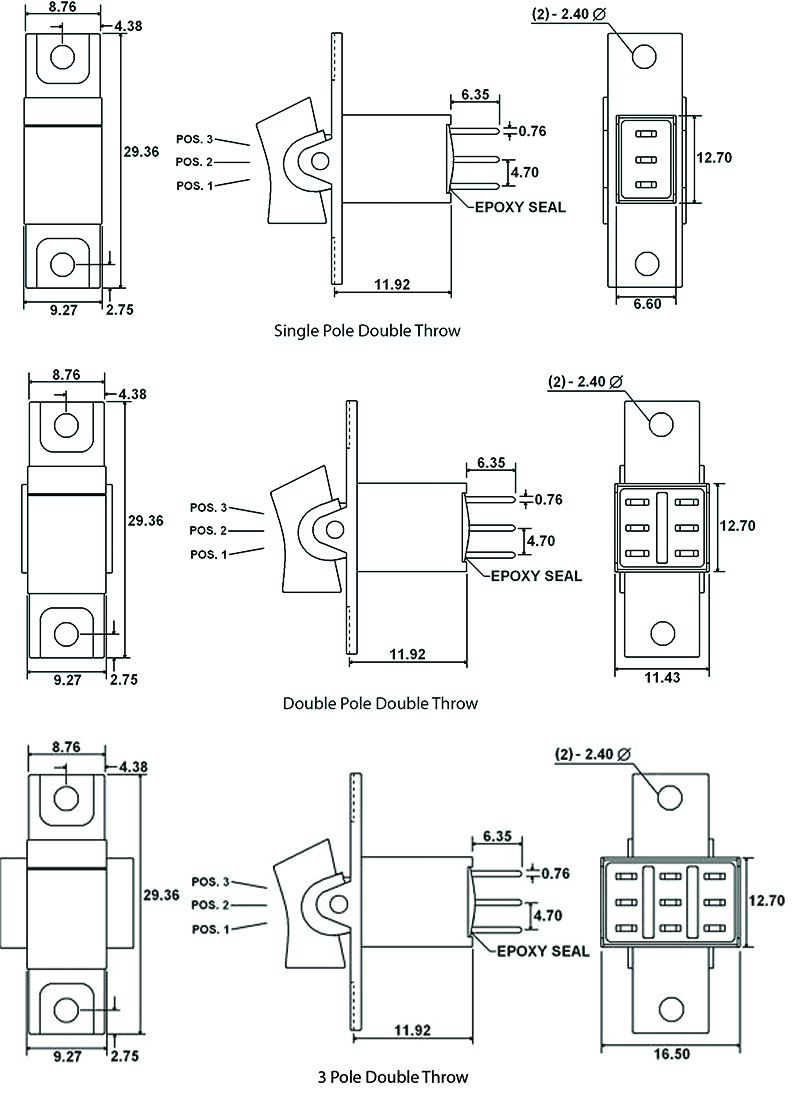

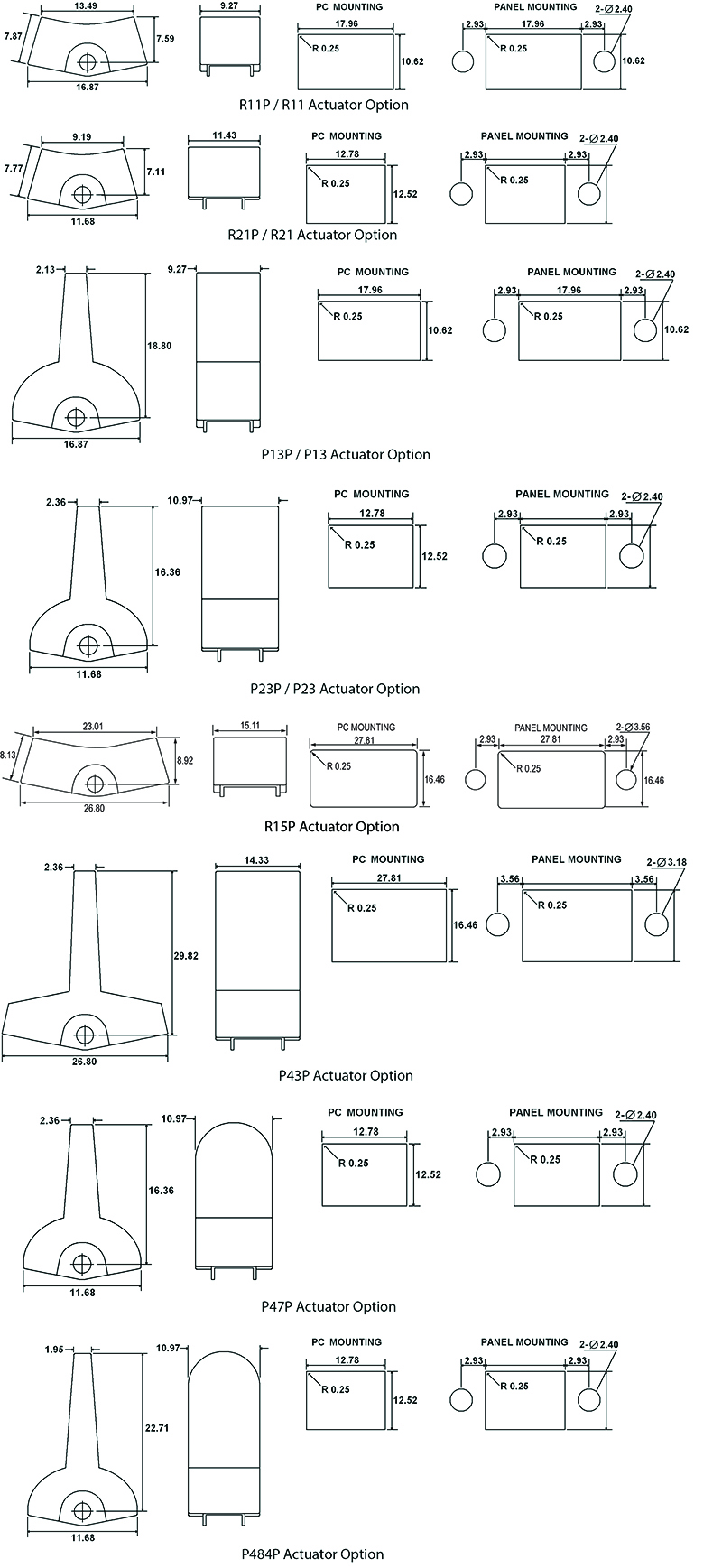

Dimensional Drawing
