BSP Series Pushbutton Switch
Sub-miniature in size and IP67 process sealed, the BSP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the BSP offers numerous bushing options, cap styles and cap colors.
Features |
Datasheet in PDF |
|
| Sub-Miniature Push Button Switch IP67 Process Sealed Wide Variety of Terminals Panel Mount Gold Contacts Available |
 |
 |
| Classifications | Right Angle Through-Hole Sub-Miniature Sealed | |
Number Of Poles
SPST, SPDT
Latching Option
Momentary
Terminal Options
Solder Lug, PC Pin, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin, PC Pin with Support Bracket, Snap-In Support Bracket
Electrical Ratings
3A@120VAC, 3A@28VDC, 1A@250VAC
Sealing Degree
IP67, Process Sealed
Electrical Life
30,000 cycles
Contact Resistance
<= 20mOhm initial
Dielectric Strength Contact To Contact
1000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
Thermoplastic Polyester
Housing Materials
6/6 Nylon Glass Filled, UL94V-0
Contacts Materials
Silver Plated Copper Alloy
Terminals Materials
Silver Plated Brass
Support Bracket Material
Tin Plated Steel
Bushing Options
5.46mm Non-Threaded, Flush Non-Threaded
Cap Styles
C84, C85
Cap Colors
Contact Factory

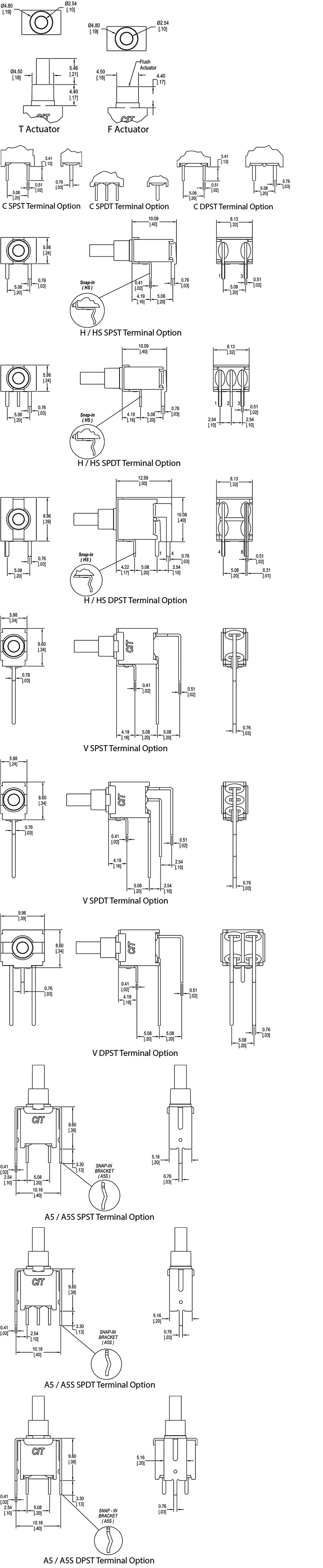

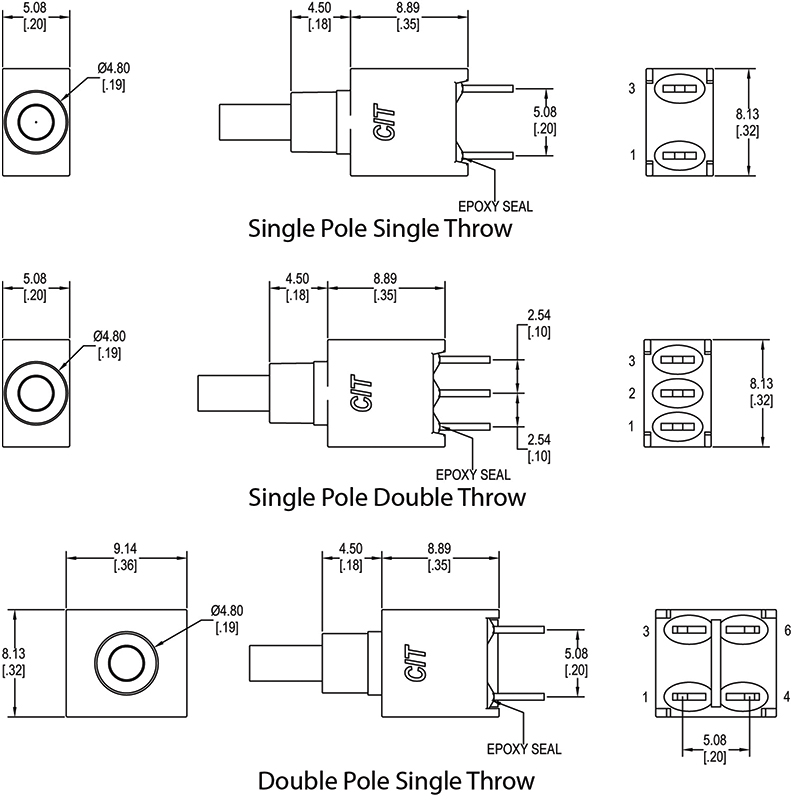

Dimensional Drawing
