CS1101 Series Tactile Switch
Sub-miniature in size, the SPST, momentary CS1101 tactile switch is available with gull wing or J-lead surface mount termination. Actuator length options are 4.3mm and 5.0mm, with actuation force of 180gF. Actuator travel is .25mm.
Features |
Datasheet in PDF |
|
| Sub-Miniature Switch Surface Mount Small Tactile Switch with Multiple Actuator Options |
 |
 |
| Classifications | Surface Mount | |
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Surface Mount
Electrical Ratings
50mA@50VDC
Electrical Life
100,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
160 +/- 50gF, 260 +/- 50gF
Actuation Travel
0.25 +/- .1mm
Dielectric Strength Contact To Contact
250V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
PA6T Nylon
Cover Material
Stainless Steel
Housing Materials
PA6T Nylon
Led Lens Material
Contacts Materials
Silver Plated Stainless Steel
Terminals Materials
Silver Plated Brass

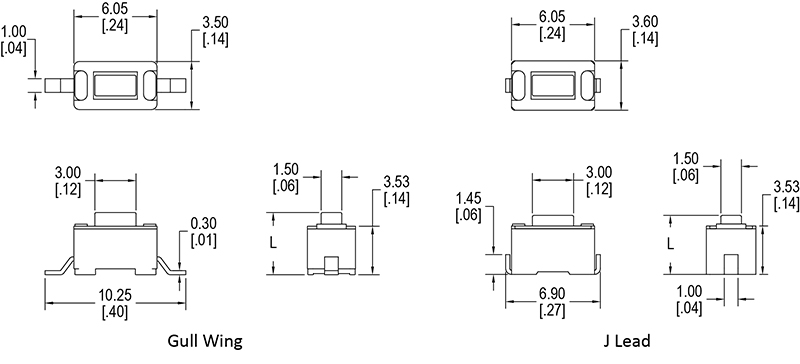

Dimensional Drawing
Schematic

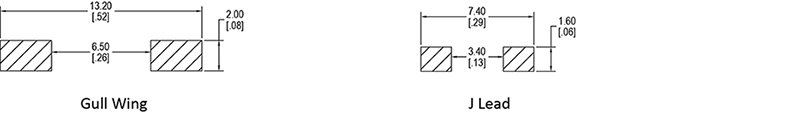

PC Board Layout
