DL Series Horizontal Pushbutton Switch
The horizontal pushbutton DL Series is available in piggyback style and multiple mounting options, including interlocked/ganged option. Ranging from DPDT up to 10PDT, the DL offers both momentary and latching options. Actuation Force ranges from 350gF up to 650gF. Over ten cap options are available in white, black, red, light gray and dark gray, along with custom color options.
Features |
Datasheet in PDF |
|
| Horizontal Style Piggyback Style Available Multiple Cap Choices Interlocked/Ganged Option |
 |
 |
| Classifications | Right Angle Panel Mount, Through-Hole | |
Number Of Poles
DPDT~10PDT
Latching Option
Momentary, Latching
Terminal Options
PC Pin
Electrical Ratings
Contact Factory
Electrical Life
100,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
2 Pole: 350 +/- 100gF, 200 +/- 100gF; 3 Pole: 450 +/- 100gF, 400 +/- 100gF; 4 Pole: 550 +/- 100gF, 450 +/- 100gF; 8~10 Pole: 650 +/- 150gF
Dielectric Strength Contact To Contact
2000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-20C to 70C
Storage Temperature
-40C to 85C
Actuator Materials
Acetal Polyoxymethylene (POM)
Housing Materials
Polycarbonate (PC)
Contacts Materials
Silver Plated Phosphor Bronze, Gold over Nickel Plated Phosphor Bronze
Terminals Materials
Silver Plated Brass, Gold over Nickel Plated Brass
Terminal Base Material
Phenolic
Chassis Material
Steel
Mounting Options
Standard No Chassis, Single Stage 3.2mm dia Mounting Holes Mounting Chassis, Single Stage M3.x.5 Threaded Mounting Holes Chassis
Spring Material2
Steel
Latching Pin Material
Steel
Cap Styles
C11, C12, C13, C14, C15, C16, C18, C19, C20, C22, C26
Cap Colors
Contact Factory

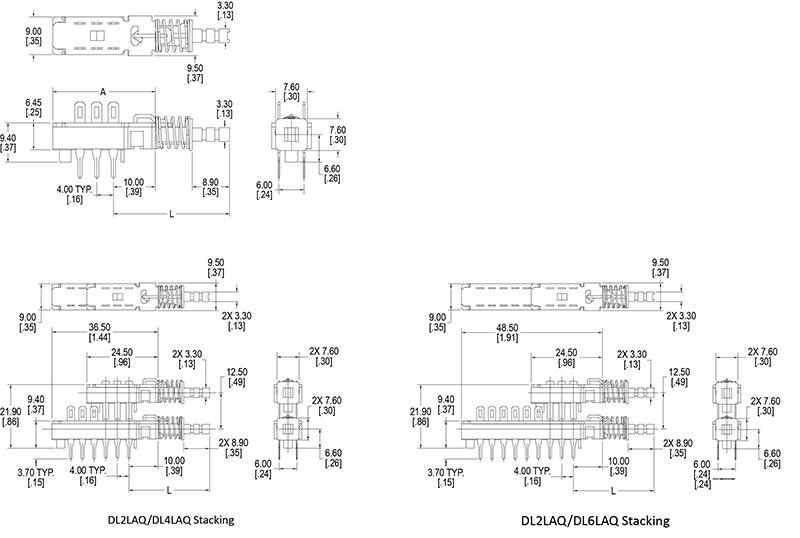

Dimensional Drawing

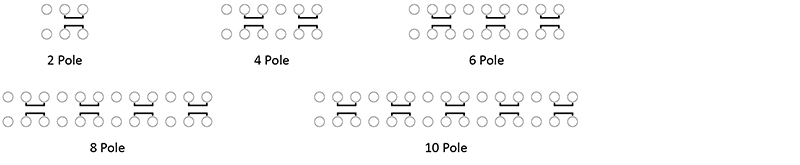

Schematic

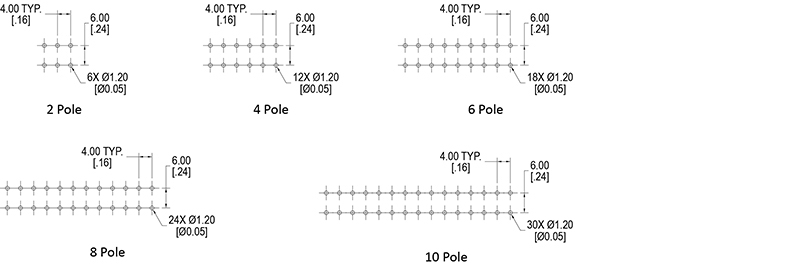

PC Board Layout
