JC Series Pushbutton Switch
The versatile JC Series is a high-quality switch offering a variety illuminated package styles to fit nearly any design requirement. With bi-colored LED combinations in blue, green, red, yellow and white, the JC series offers an internal snap-action mechanism providing long lasting, quick make and break momentary or latching contacts. Single color LEDs are three segment and bi-color include six segments offering uniform lighting. Offering laser etching with multiple style choices and numerous color choices – the combinations are endless!
Features |
Datasheet in PDF |
|
Dual LED Option Multiple Color Options Multiple Cap Options including Laser Etching Panel Mount and PCB |
Classifications | Illuminated Panel Mount, Through-Hole |
Number Of Poles
SPDT, DPDT
Latching Option
Momentary, Latching
Actuator Styles
Square, Extend Square, Rectangle, Square Concave, Square Panel Mount, Extended Square Panel Mount
Terminal Options
PC Pin
1st Led
Red, Green, Yellow, Blue, White, Red/Yellow, Red/Green, Red/Blue, Red/White, Yellow/Green, Yellow/Blue, Yellow/White, Green/Blue, Green/White, Blue/White
Electrical Ratings
500mA@24VDC
Electrical Life
1,000,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
200 +/- 50gF
Actuation Travel
2.2 +/- .1mm
Dielectric Strength Contact To Contact
1000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
Polycarbonate (PC)
Body Material
Polycarbonate (PC)
Housing Materials
Polyamid (PA), UL94V-0
Contacts Materials
Silver or Gold Plated Brass Rivet
Terminals Materials
Silver Plated Brass, Gold Plated Bras
Base Material
Polyamide (PA), UL94V-0
Actuator Color
Clear, Red, Yellow, Green, Blue
Diffuser Colors
White, Red, Yellow, Green, Blue
Laser Etching Styles
A, B, C, D, E, F, G, H, I, J, K, L
Laser Etching Colors
Misty Silver, Black
Dimensional Drawing

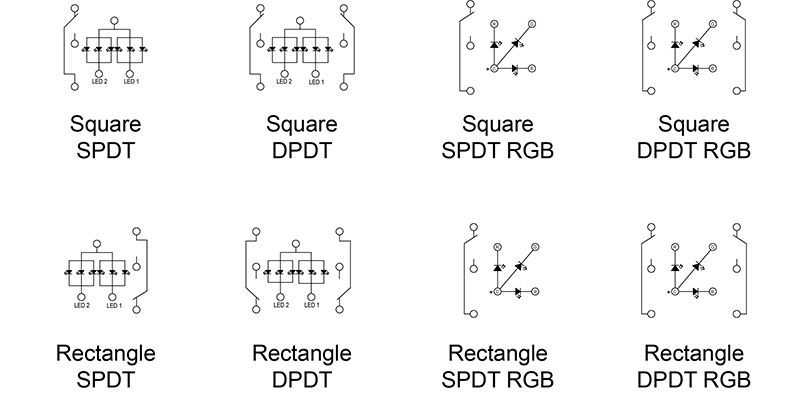

Schematic

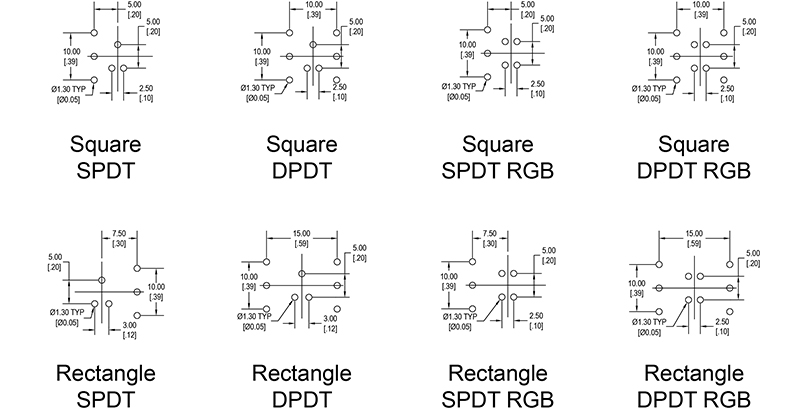

PC Board Layout
