KT Series .100 Pitch Low Profile DIP Switch



The KT Series DIP switch offers a through-hole, .100 pitch low profile. Available with the option of extended or recess actuators, the termination of the KT can be straight or splayed. Positions range from 02 to 12. Contact materials are gold over nickel plated beryllium copper and terminal materials are gold over nickel plated brass. Top-tape seal is offered with tube packaging.

Features

Datasheet in PDF
.100 Pitch
Low Profile
Extended or Recessed Actuator Option
Straight or Splayed Terminal Option
Top Tape Seal Option



Classifications Through-Hole





Number Of Poles
DPST~12PST
Latching Option
Multiple
Actuator Styles
Extended, Recessed
Terminal Options
Straight
Electrical Ratings
Switch: 25mA@24VDC; Carry: 100mA@24VDC
Electrical Life
2,000 cycles
Contact Resistance
<= 25mOhm initial
Actuation Force
600gF maximum
Actuation Travel
0.9mm
Dielectric Strength Contact To Contact
500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
White Nylon UL94V-0
Cover Material
Black Nylon UL94V-0
Housing Materials
Black Nylon UL94V-0
Contacts Materials
Gold over Nickel Plated Beryllium Copper
Terminals Materials
Gold over Nickel Plated Brass
Tape Seal Option
No Tape Seal, Tape Seal
Packaging Options
Tube

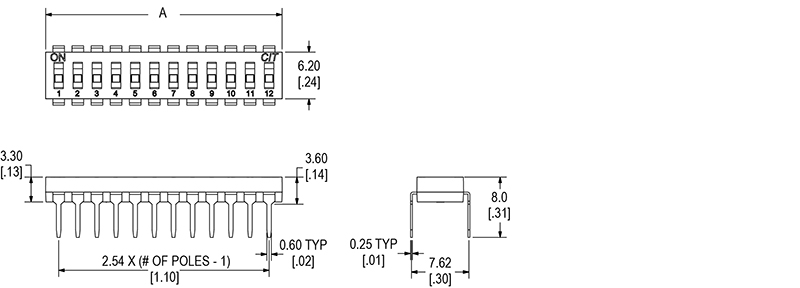

Dimensional Drawing

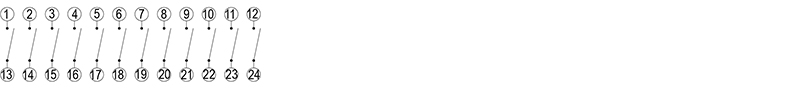

Schematic

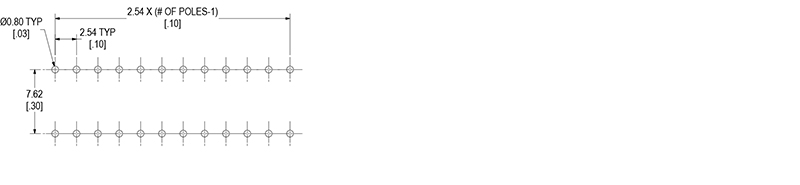

PC Board Layout
