MS1201 Series Slide Switch
The MS1201 SPDT micro switch features a panel mount with multiple actuator lengths ranging from 4.0mm to 5.5mm. The MS1201 slide switch features nylon housing materials and phenolic and polybutylene terephthalate (PBT) base materials. This switch also features 4.0mm or 5.5mm actuator length options and 3.0mm total actuation travel.
Features |
Datasheet in PDF |
|
Subminiature Switch Multiple Actuator Lengths Nylon Housing |
![]() |
![]() |
Classifications | Panel Mount Sub-Miniature |
Number Of Poles
SPDT
Latching Option
Multiple
Terminal Options
PC Pin
Electrical Ratings
200mA@30VDC
Electrical Life
10,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
200 +/- 100gF
Actuation Travel
3.0mm total
Dielectric Strength Contact To Contact
1000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
Acetal, Nylon
Housing Materials
Steel, Nylon
Contacts Materials
Silver Plated Phosphor Bronze
Terminals Materials
Silver Plated Brass
Base Material
Phenolic, Polybutylene Terephthalate (PBT)
Actuator Lengths
4.0mm, 5.5mm
Dimensional Drawing
Schematic

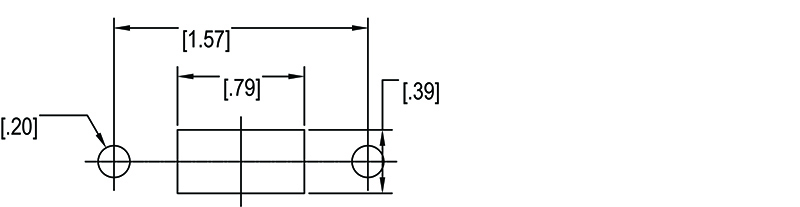

PC Board Layout
