MS1206 Series Slide Switch
Through-hole and sub-miniature in size, the right angle MS1206 single pole double throw slide switch offers steel housing materials with actuator length choices from 3.0mm to 6.0mm. This latching micro switch features PC pin terminal options with terminals made of silver-plated brass. The base is made of phenolic material while the actuator is made of acetal material. This switch features a storage and operating temperature of -40C to 85C.
Features |
Datasheet in PDF |
|
Right Angle Sub-Miniature Size Multiple Actuator Lengths Steel Housing |
![]() |
![]() |
Classifications | Right Angle Through-Hole Sub-Miniature |
Number Of Poles
SPDT
Latching Option
Multiple
Terminal Options
PC Pin
Electrical Ratings
200mA@30VDC
Electrical Life
10,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
200 +/- 100gF
Actuation Travel
2.5mm total
Dielectric Strength Contact To Contact
1000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
Acetal
Housing Materials
Steel
Contacts Materials
Silver Plated Phosphor Bronze
Terminals Materials
Silver Plated Brass
Base Material
Phenolic
Actuator Lengths
3.0mm, 6.0mm

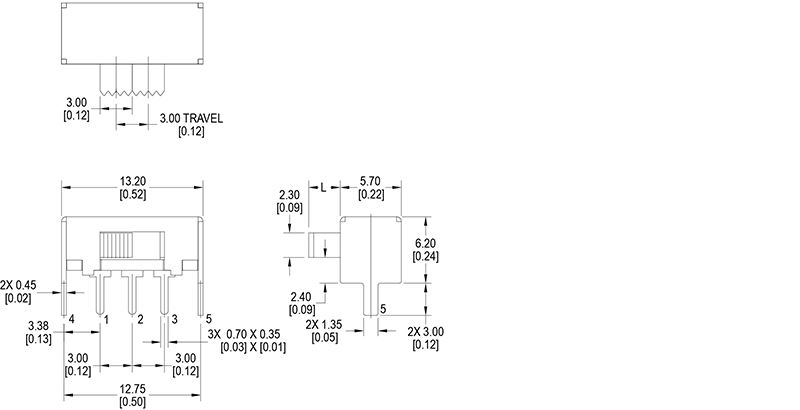

Dimensional Drawing
Schematic

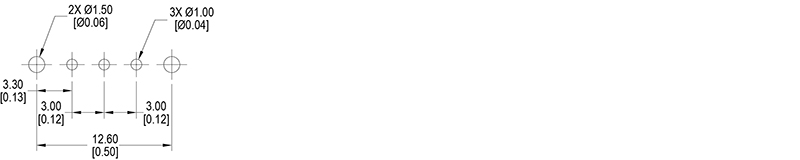

PC Board Layout
