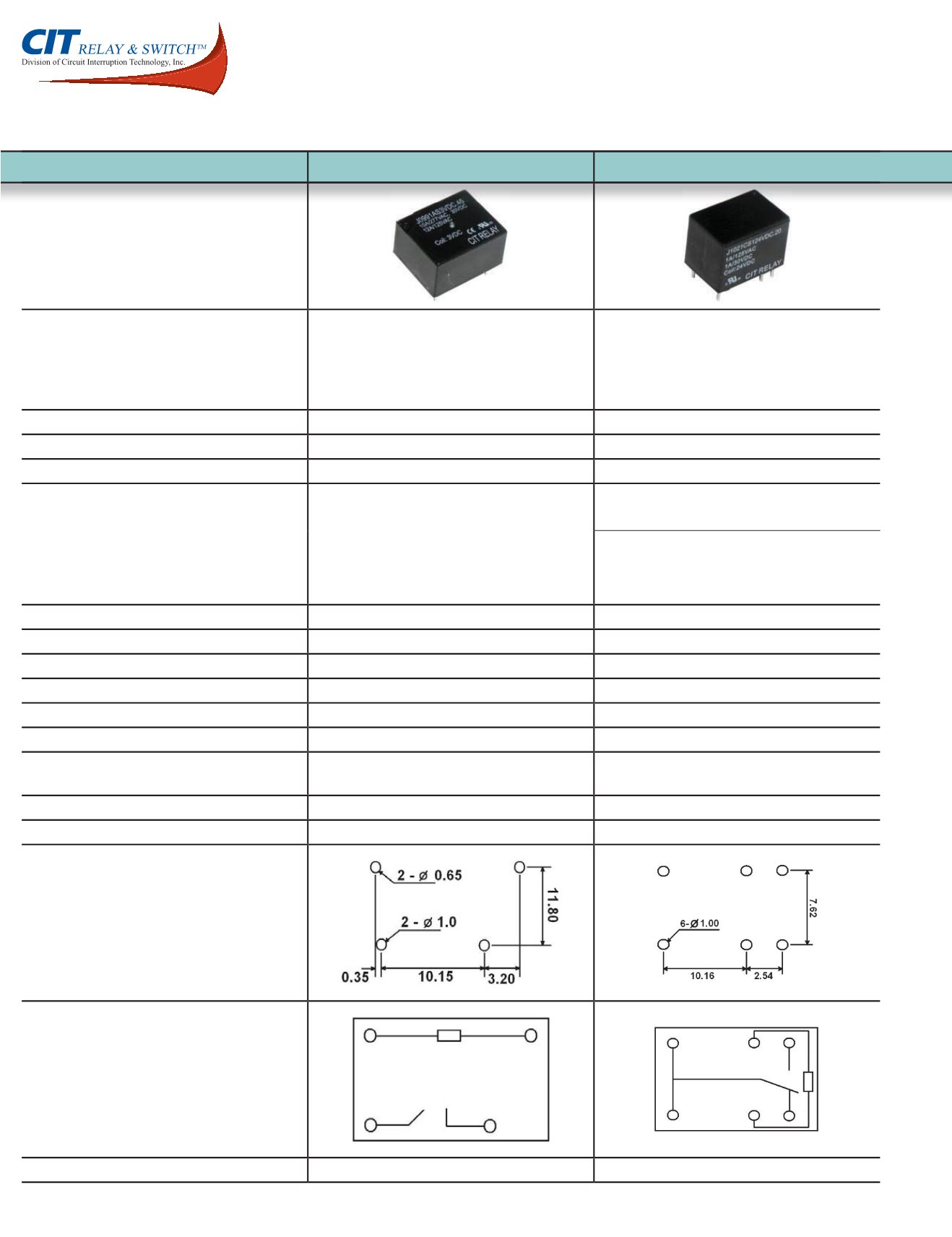

10 / 36
Dimensions shown in mm. Dimensions are shown for reference purposes only.
Speci cations and availability subject to change without notice.
UL Recognized
Series Number
J099
J102
Appearance
Features
High Sensivity
Light Weight
Switching Current up to 12A
PC Board Mounting
High Sensitivity
Super Light Weight
Low Coil Power Consumption
PC Board Mounting
Ideal for High Density Mounting
Dimensions (L x W x H mm)
18.4 x 15.0 x 10.3
15.5 x 10.5 x 11.25
Contact Arrangement
1A
1A, 1B, 1C
Contact Material
AgSnO 2
AgNi + Au, Ag + Au
Contact Ratings
10A @ 277VAC, General Purpose, 100k cycles
10A @ 30VDC, General Purpose, 100k cycles
12A @ 125VAC, Resistive, 100k cycles
AgNi 3A & 5A @125VAC General Purpose
3A & 5A @ 30VDC Resistive
Ag 1A & 3A @ 120VAC General Purose
1A & 3A @ 30VDC Resistive
Pilot Duty 270VA, 120VAC
Coil Voltage Options
12VDC
5 ~ 24VDC
Coil Power Options
.45W
.20W, .36W & .45W
Contact Resistance
< 50m
< 50m
Insulation Resistance
100M
@ 500VDC
100M
@ 500VDC
Electrical Life
100K cycles
100K cycles
Mechanical Life
10M cycles
10M cycles
Dielectric Strength Contact to Contact
Contact to Coil
1000V rms
2500V rms
500V rms
1250V rms
Operating Temperature
-40
°
C to 85
°
C
-40
°
C to 85
°
C
Mounting Methods
PC Pin
PC Pin
PC Board Layouts
Schematics
Agency Approvals
E197851
E197851
page 10
www.citrelay.com
phone - 763.535.2339 fax - 763.535.2194
