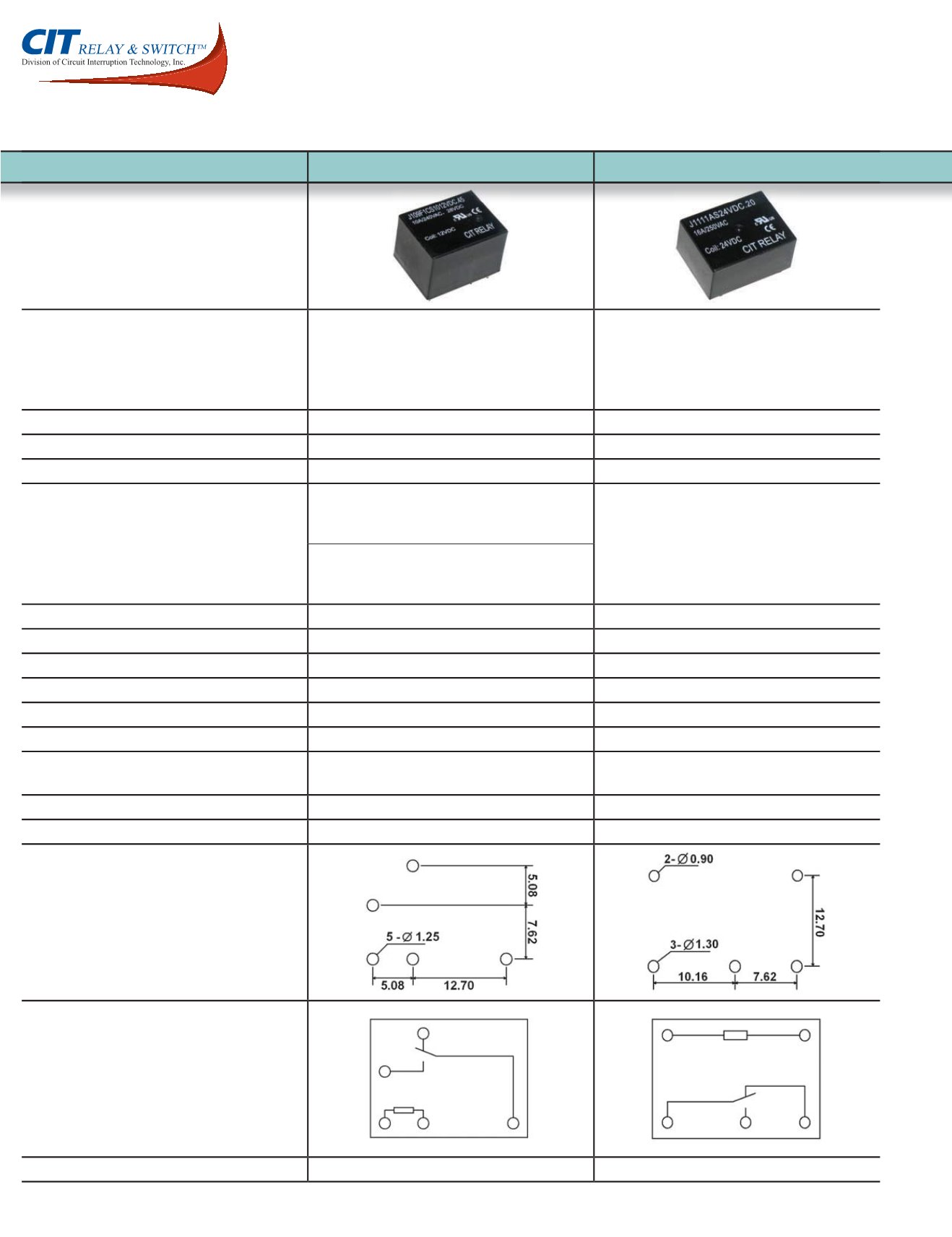

14 / 36
Dimensions shown in mm. Dimensions are shown for reference purposes only.
Speci cations and availability subject to change without notice.
UL Recognized
Series Number
J109F
J111
Appearance
Features
F Class Insulation Standard
Small Size, Light Weight
PC Board Mounting
UL / cUL Certified
Low Profile
Small Size, Light Weight
Coil Voltages up to 100VDC
UL / cUL Certified
Dimensions (L x W x H mm)
22.3 x 17.3 x 14.5
22.2 x 16.5 x 10.9
Contact Arrangement
1A, 1B, 1C
1A, 1C
Contact Material
AgSnO 2
AgSnO 2
Contact Ratings
10A Contact 6A @ 28VDC & 300VAC Resistive
10A @ 28VDC & 125VAC General Purpose
1A : 16A @ 250VAC Resistive
1C : 10A @ 250VAC Resistive
12A Contact 12A @ 28VDC & 125VAC General Purpose
1/3hp @ 120VAC &240VAC
Coil Voltage Options
5 ~ 48VDC
5 ~ 24VDC
Coil Power Options
.36W, .45W, .50W & .80W
.20W & .45W
Contact Resistance
< 50m
< 50m
Insulation Resistance
100M
@ 500VDC
100M
@ 500VDC
Electrical Life
100K cycles
100K cycles
Mechanical Life
10M cycles
10M cycles
Dielectric Strength Contact to Contact
Contact to Coil
1000V rms
2500V rms
750V rms
1500V rms
Operating Temperature
-55
°
C to 125
°
C
-40
°
C to 85
°
C
Mounting Methods
PC Pin
PC Pin
PC Board Layouts
Schematics
Agency Approvals
E197851
E197852
