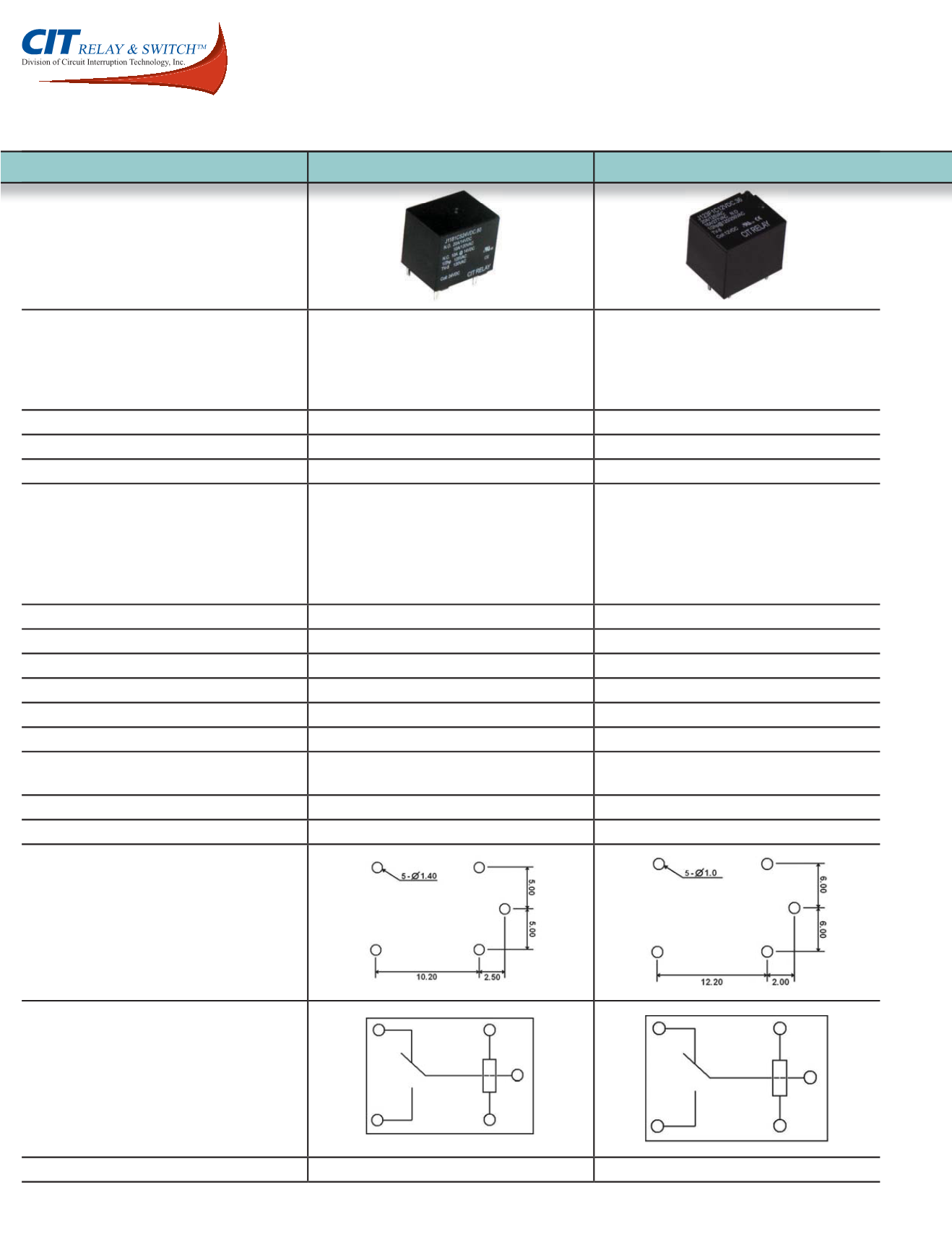

18 / 36
www.citrelay.com
phone - 763.535.2339 fax - 763.535.2194
Dimensions shown in mm. Dimensions are shown for reference purposes only.
Speci cations and availability subject to change without notice.
page 18
UL Recognized
Series Number
J118
J123F
Appearance
Features
Low Coil Power Consumption
Small Size, Light Weight
PC Board Mounting
Wide Range of Applications
F Class Insulation Standard
Small Size, Light Weight
Capable of Handling 1000W Lamp Loads
Designed to Withstand High In-Rush
Dimensions (L x W x H mm)
15.5 x 12.2 x 13.8
19.5 x 16.1 x 17.1
Contact Arrangement
1A, 1B, 1C
1A, 1C
Contact Material
AgSnO 2
AgSnO 2 In 2 O 3
Contact Ratings
NO : 10A @ 120VAC Resistive
20A @ 14VDC Resistive
NC : 10A @ 14VDC Resistive
1/2hp @ 125VAC
TV-5 @ 120VAC
20A @ 125VAC
16A @ 277VAC
10A @ 250VAC General Purpose, 20k, 85
°
C
1hp @ 125/250 NO
1/2hp @ 125/250 NC
TV-8 @ 120VAC
Coil Voltage Options
6 ~ 24VDC
5 ~ 24VDC
Coil Power Options
.60W & .80W
.36W & .45W
Contact Resistance
< 50m
< 50m
Insulation Resistance
100M
@ 500VDC
100M
@ 500VDC
Electrical Life
100K cycles
100K cycles
Mechanical Life
10M cycles
10M cycles
Dielectric Strength Contact to Contact
Contact to Coil
500V rms
500V rms
1500V rms
2500V rms
Operating Temperature
-40
°
C to 85
°
C
-55
°
C to 125
°
C
Mounting Methods
PC Pin
PC Pin
PC Board Layouts
Schematics
Agency Approvals
E197852
E197852
