Automotive
page 24

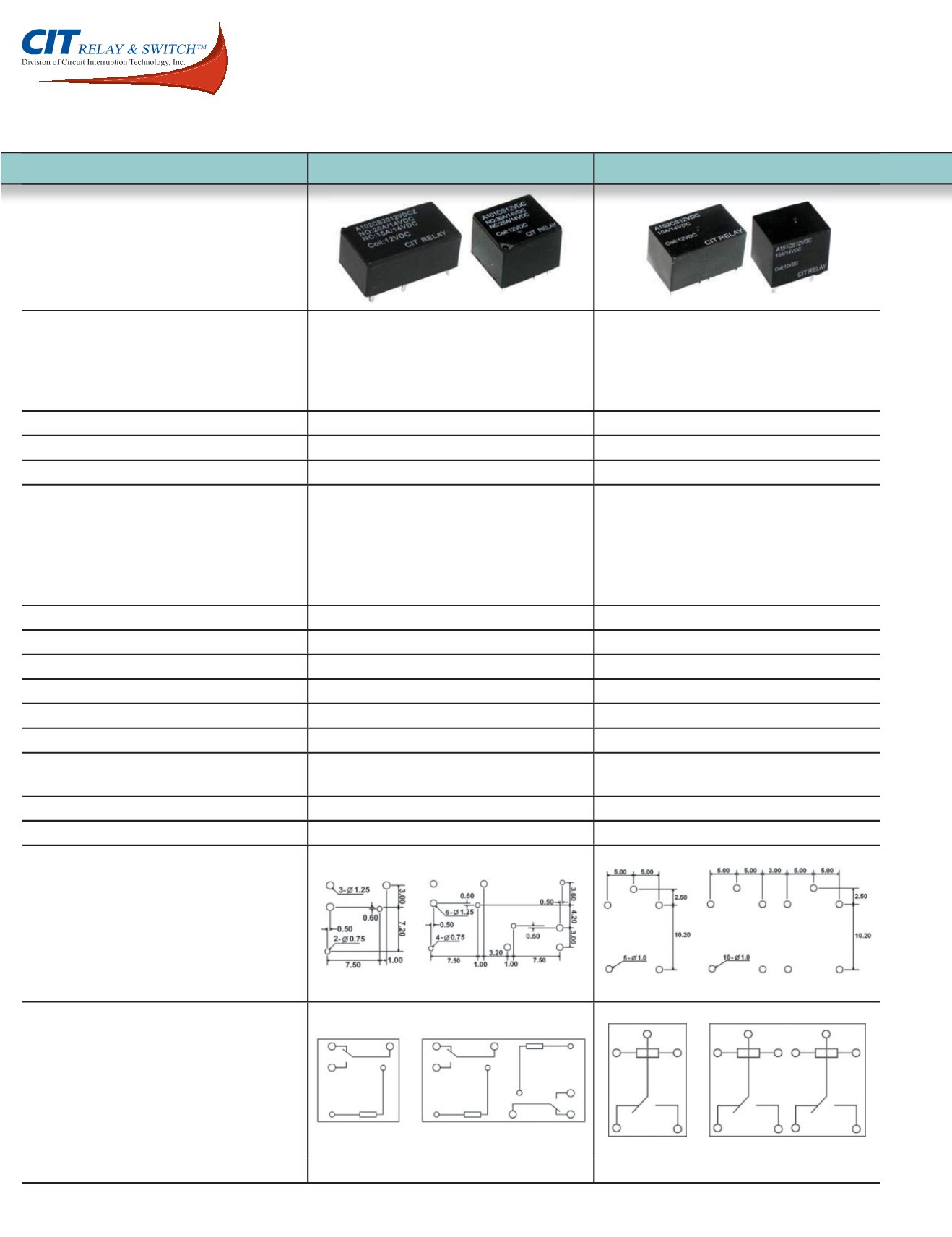

Series Number
A10
A15
Appearance
Features
Switching Capacity up to 30A
Dual Relay Available
Withstands High Temperature
PC Pin Mounting
Ultra Light Weight - 4g
Switching Capacity up to 20A
Small Size, Light Weight
Dual Relay Available
Suitable for Automotive & Lamp Accessories
Dimensions (L x W x H mm)
12.0 (23.8) x 12.9 x 9.9
15.5 x 12.5 (25.5) x 13.7
Contact Arrangement
1A, 1C, 2A, 2C
1C, 1U, 2C, 2U
Contact Material
AgSnO 2
AgSnO 2
Contact Ratings
1A : 25A, 30A @ 14VDC
1C : 25A, 30A @ 14VDC NO
1C : 20A, 25A @ 14VDC NC
2A : 25A, 30A @ 14VDC
2C : 25A, 30A @ 14VDC NO
2C
:
20A, 25A @ 14VDC NC
20A @ 14VDC
Coil Voltage Options
5 ~ 24VDC
12VDC
Coil Power Options
.55W
.70W
Contact Resistance
< 30m
< 50m
Insulation Resistance
100M
@ 500VDC
100M
@ 500VDC
Electrical Life
100K cycles
100K cycles
Mechanical Life
10M cycles
10M cycles
Dielectric Strength Contact to Contact
Contact to Coil
500V rms
500V rms
500V rms
500V rms
Operating Temperature
-40
°
C to 105
°
C
-40
°
C to 85
°
C
Mounting Methods
PC Pin
PC Pin
PC Board Layouts
Schematics
1C
2C
1C
2C
