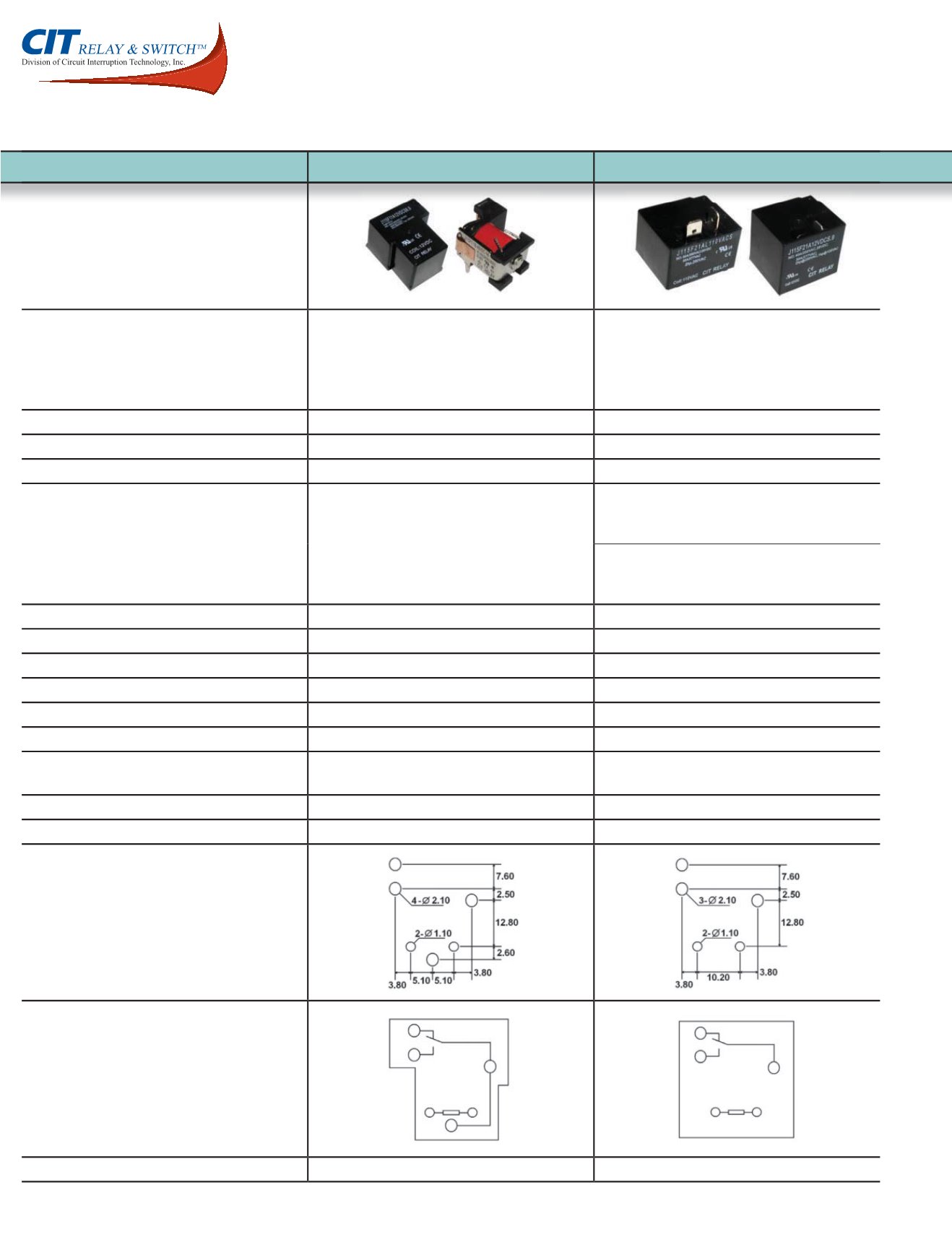

16 / 36
Dimensions shown in mm. Dimensions are shown for reference purposes only.
Speci cations and availability subject to change without notice.
UL Recognized
Series Number
J115F1
J115F2
Appearance
Features
F Class Insulation Standard
Small Size, Light Weight
Heavy Contact Load
Strong Shock & Vibration Resistance
UL / cUL & TÜV Certified
F Class Insulation Standard
Small Size, Light Weight
Heavy Contact Load
Strong Shock & Vibration Resistance
UL / cUL & TÜV Certified
Dimensions (L x W x H mm)
31.7 x 26.9 x 20.3
31.9 x 26.8 x 28.1
Contact Arrangement
1A, 1B, 1C
1A, 1B, 1C
Contact Material
AgSnO 2, AgSnO 2 In 2 O 3
AgSnO 2, AgSnO 2 In 2 O 3
Contact Ratings
NO : 40A @ 240VAC Resistive; 20A @ 240VAC Resistive, 250k cycles
30A @ 277VAC General Purpose; 25A @ 277VAC Resistive,
100k cycles; 5A @ 280VAC Ballast; 2hp @ 250VAC
NO : 40A @ 240VAC Resistive; 20A @ 240VAC Resistive, 250k cycles
30A @ 277VAC General Purpose; 25A @ 277VAC Resistive,
100k cycles; 5A @ 280VAC Ballast; 2hp @ 250VAC
NC : 30A @ 240VAC Resistive; 20A @ 240VAC General Purpose;
20A @ 277VAC General Purpose; 30A @ 30VDC Resistive;
5A @ 280VAC Ballast; 1 1/2hp @ 250VAC
NC : 30A @ 240VAC Resistive; 20A @ 240VAC General Purpose;
20A @ 277VAC General Purpose; 30A @ 30VDC Resistive;
5A @ 280VAC Ballast; 1 1/2hp @ 250VAC
Coil Voltage Options
5 ~ 110VDC & 12 ~ 277VAC
5 ~ 110VDC & 12 ~ 277VAC
Coil Power Options
DC : .60W & .90W AC : 2VA
DC : .60W & .90W AC : 2VA
Contact Resistance
< 30m
< 30m
Insulation Resistance
1000M
@ 500VDC
1000M
@ 500VDC
Electrical Life
100K cycles
100K cycles
Mechanical Life
10M cycles
10M cycles
Dielectric Strength Contact to Contact
Contact to Coil
1500V rms
4000V rms & 2500V rms
1500V rms
2500V rms
Operating Temperature
-55
°
C to 125
°
C
-55
°
C to 125
°
C
Mounting Methods
PC Pin
PC Pin
PC Board Layouts
Schematics
Agency Approvals
UL E197852 / TÜV
UL E197852 / TÜV
