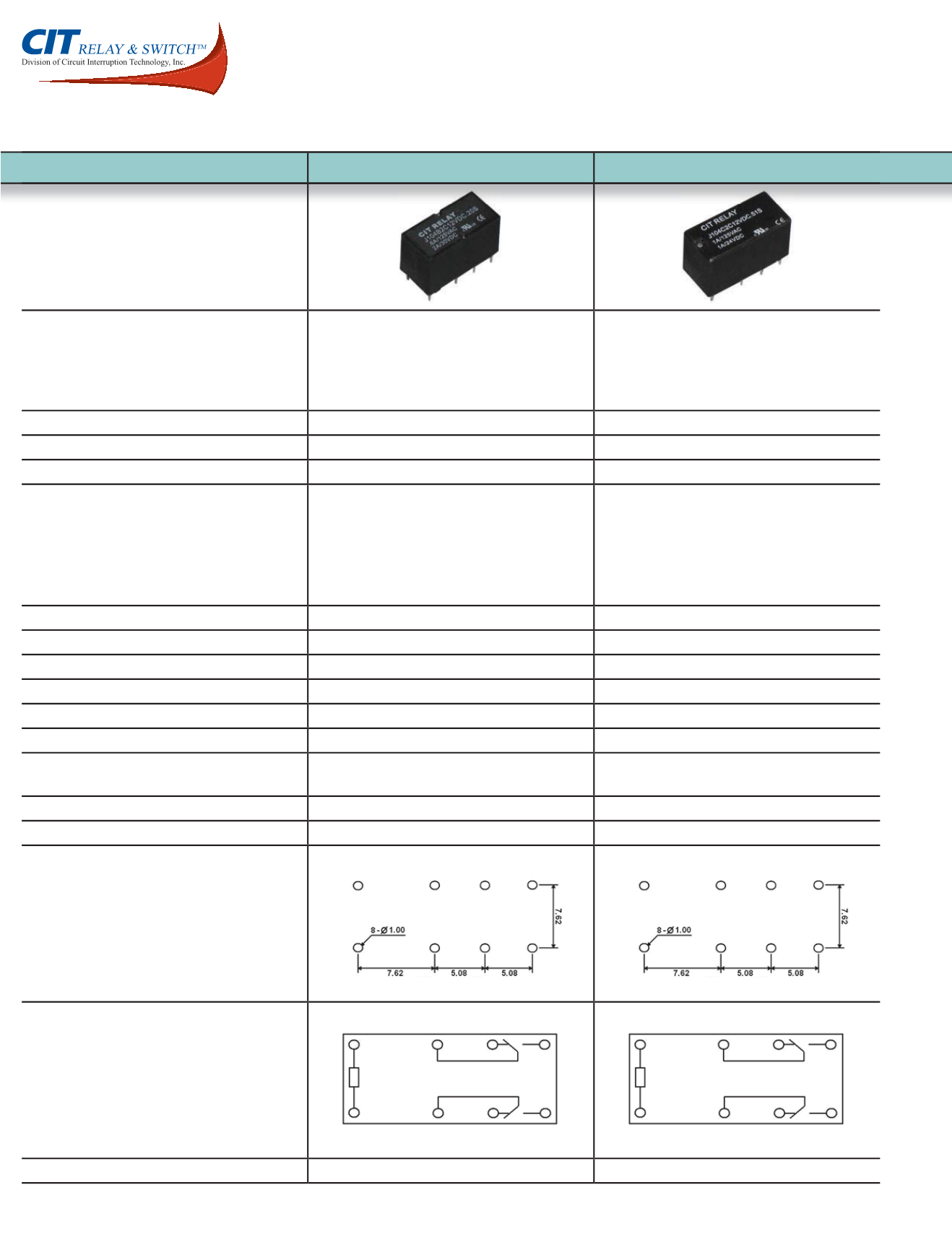

12 / 36
Dimensions shown in mm. Dimensions are shown for reference purposes only.
Speci cations and availability subject to change without notice.
UL Recognized
Series Number
J104B
J104C
Appearance
Features
Bifurcated Contacts for High Reliability
High Sensitivity
Light Weight
Conforms to FCC Part 68
PC Board Mounting
Standard Contacts - Low Cost Version
High Sensitivity
Light Weight
Conforms to FCC Part 68
PC Board Mounting
Dimensions (L x W x H mm)
20.0 x 9.8 x 10.8
21.0 x 9.8 x 10.8
Contact Arrangement
2C
2C
Contact Material
AgNi + Au Clad
Ag
Contact Ratings
2A @ 30VDC Resistive
3A @ 30VDC NO Resistive
.6A @ 125VAC Resistive
1A @ 24VDC Resistive
1A @ 125VAC Resistive
Coil Voltage Options
3 ~ 48VDC
3 ~ 48VDC
Coil Power Options
.15W & .20W
.20W , .36W & .51W
Contact Resistance
< 50m
< 50m
Insulation Resistance
100M
@ 500VDC
100M
@ 500VDC
Electrical Life
500K cycles
500K cycles
Mechanical Life
100M cycles
100M cycles
Dielectric Strength Contact to Contact
Contact to Coil
1000V rms
1500V rms
500V rms
1000V rms
Operating Temperature
-40
°
C to 85
°
C
-40
°
C to 85
°
C
Mounting Methods
PC Pin
PC Pin
PC Board Layouts
Schematics
Agency Approvals
E197851
E197851
page 12
www.citrelay.com
phone - 763.535.2339 fax - 763.535.2194
